Corner connector A4
Type GEV 36 A4 | Item no. 6016764 | EAN 4012196120253
Item no. / Type
6016764 / GEV 36 A4
Smallest selling unit: 10 piece
10piece
Description

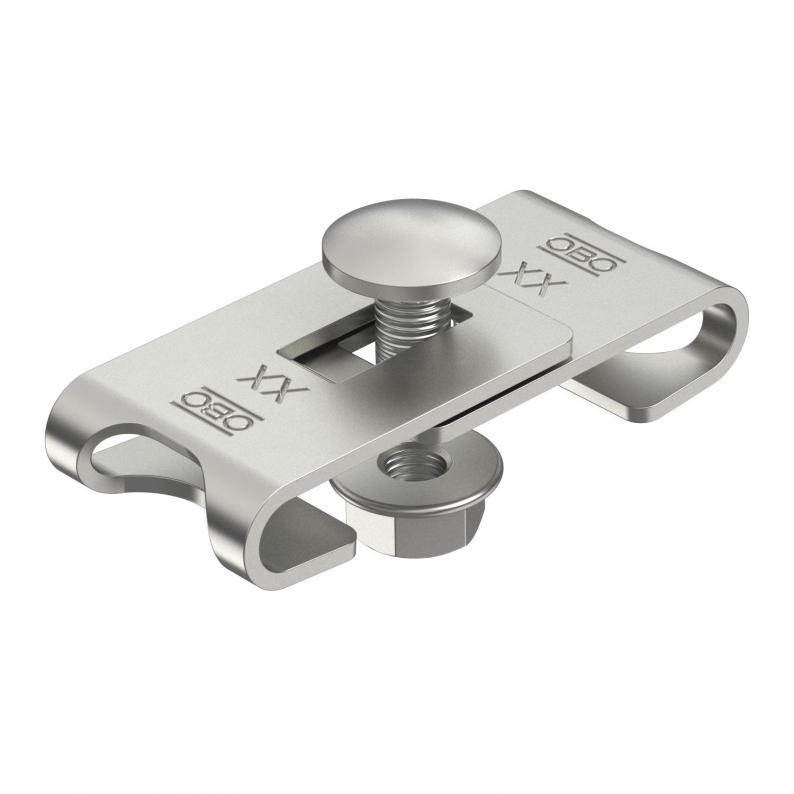

Corner connector for the creation of mesh cable tray bend elements.
Including FRS M6 x 12 bolt with flange nut
Technical data

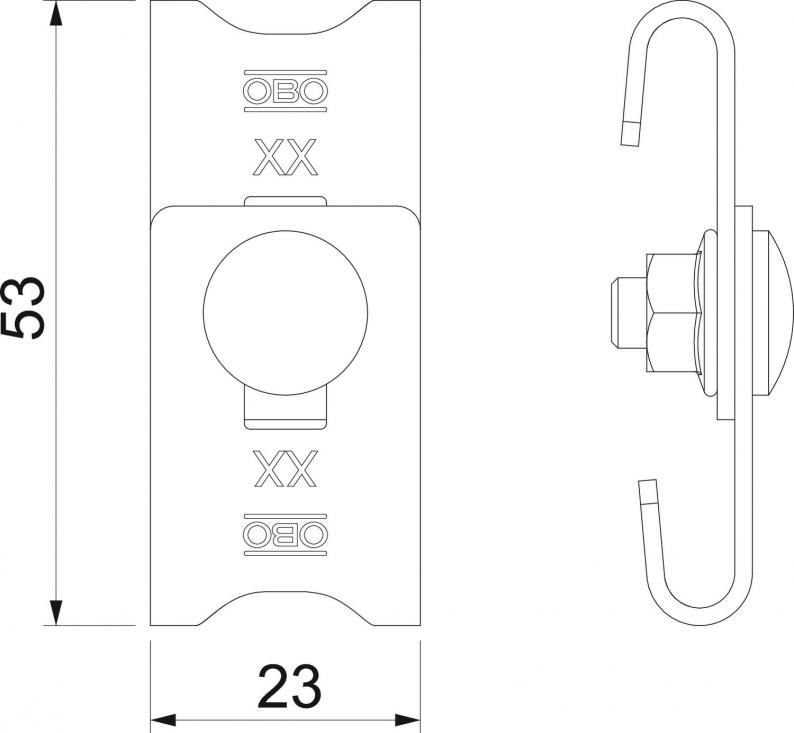

Dimensions
| Length | 56 mm |
|---|---|
| Width | 23 mm |
| Height | 16 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Dimension | 42-54 x 23 |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Bright, treated |
| Material | Stainless steel 1.4401 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1819 kg CO2e / 1 Piece |
