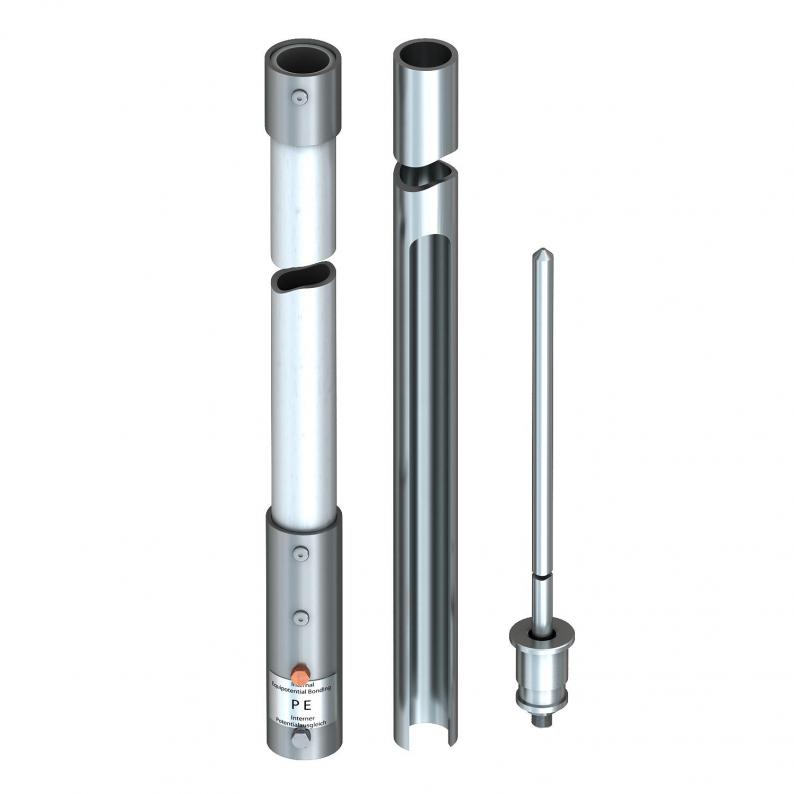

Insulated air-termination rod for inner-routed isCon® conductor with side exit

Insulated air-termination rod for inner-routed isCon® conductor with side exit

Type isFang IN-A L4 | Item no. 5408874 | EAN 4012196647804

Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

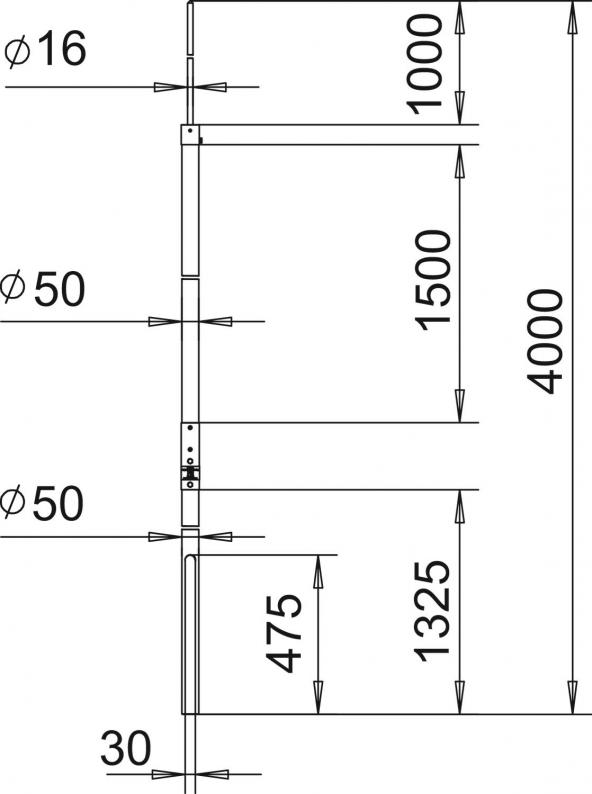

Dimensions

Length4000 mm
Dimension L4000 mm
Dimension A1325 mm
Dimension B1000 mm
Dimension H1500 mm
Dimension d min.50 mm

Technical data

High voltage-resistant, insulated versionyes
ConnectionRound conductor
Version forAir-termination rod
Dimension4000mm
MaterialFibre-glass-reinforced plastic
CO2 Footprint (GWP) Cradle-to-Gate49,6043 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (3)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Type
F-FIX-S16

Smallest selling unit: 1 piece

Type
F-FIX-B16 3B

Smallest selling unit: 10 piece

Type
isCon Pro 75 SW

Smallest selling unit: 100 m

Variants

Length
isFang IN-A L4
Item no.
5408874
Length
4000
isFang IN-A L6
Item no.
5408876
Length
6000
isFang IN-A L8
Item no.
5408878
Length
8000
isFang IN-A L10
Item no.
5408880
Length
10000
