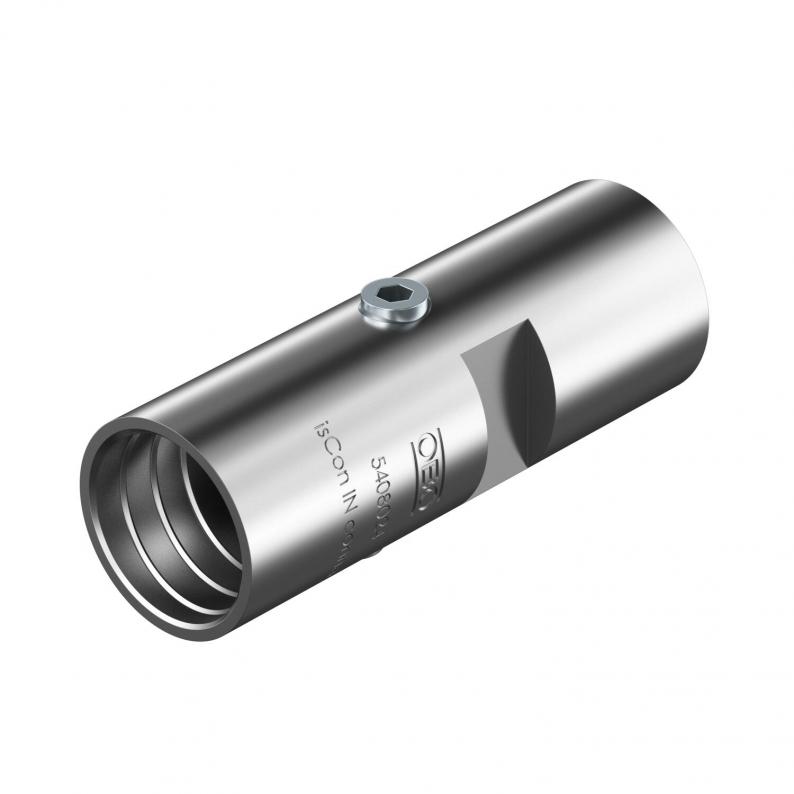

Connection element for installation in the insulated interception rod isFang IN
Type isCon IN connect | Item no. 5408024 | EAN 4012195864172
Item no. / Type
Lightning current carrying capacity
Dimension d min.
Fit
Smallest selling unit: 1 piece
1piece
Description
• Screw-on termination of the connection for the isCon® cable
• Connection and installation of the cable in the insulated interception rod
• Tested up to 150 kA (lightning protection Class II)
• Connection and installation of the cable in the insulated interception rod
• Tested up to 150 kA (lightning protection Class II)
Technical data
Technical data
| Suitable for connection | Miscellaneous |
|---|---|
| Lightning current carrying capacity | H1/150 kA |
| Fit | 23 mm |
| Dimension | Ø23mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 23 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2871 kg CO2e / 1 Piece |

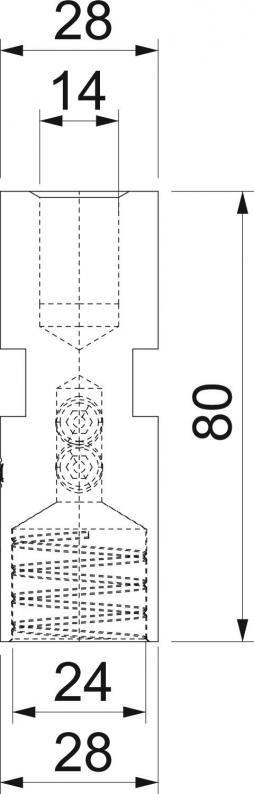

Dimensions
| Dimension d min. | 28 mm |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 5408013
Stripping tool for isCon® conductorType
isCon stripper 2
Smallest selling unit: 1 piece
1piece
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon IN con 2
H1/150
28
20
5408019
isCon IN con PRE
H2/200
28
23
5408020
isCon IN connect
H1/150
28
23
5408024
Lightning current carrying capacity
Fit
isCon IN con 2
Item no.
5408019
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
isCon IN con PRE
Item no.
5408020
Lightning current carrying capacity
H2/200
Dimension d min.
28
Fit
23
isCon IN connect
Item no.
5408024
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
23
