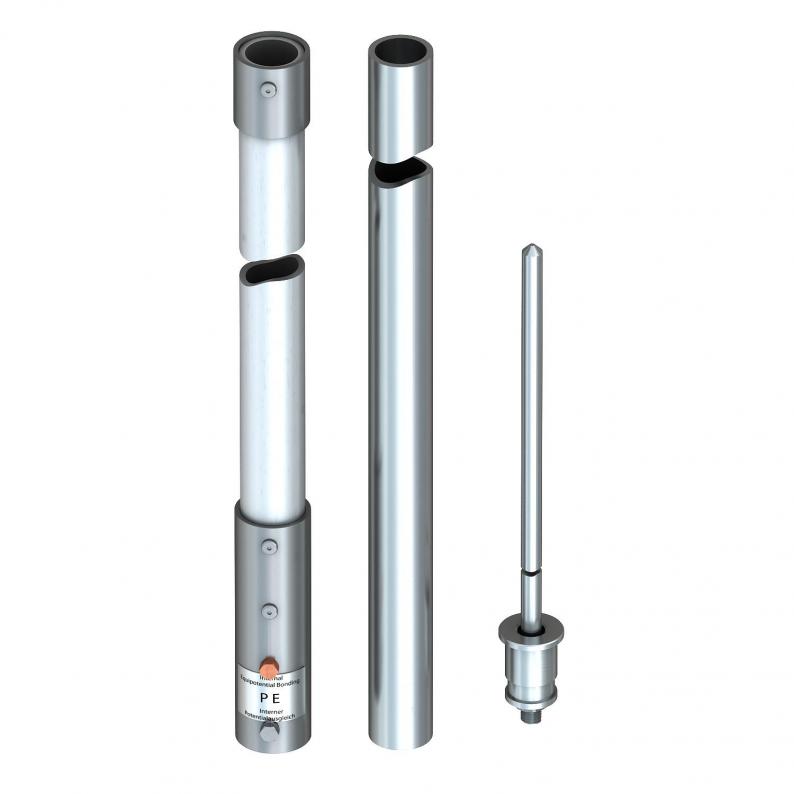

Insulated air-termination rod for inner-routed isCon® conductor

Type isFang IN L4 | Item no. 5408854 | EAN 4012196647842

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

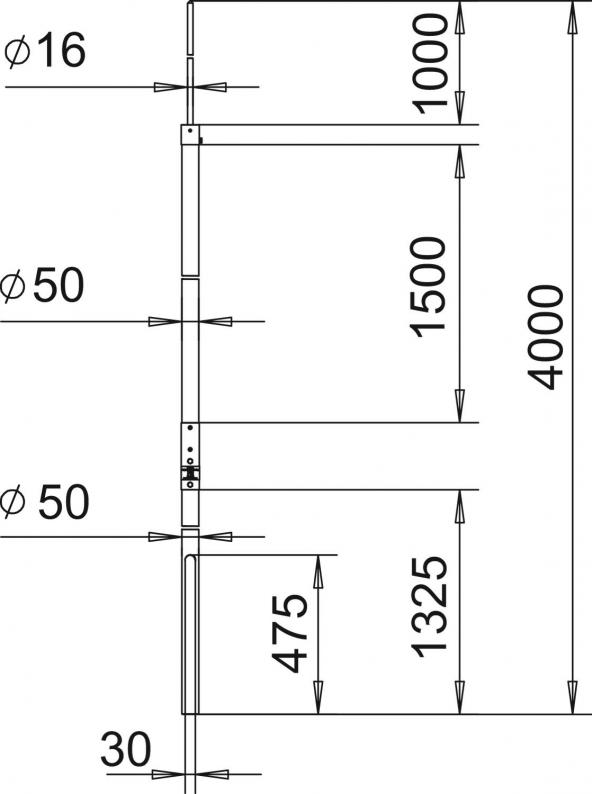

Dimensions

Length	4000 mm
Dimension L	4000 mm
Dimension A	1325 mm
Dimension B	1000 mm
Dimension H	1500 mm
Dimension d min.	50 mm

Technical data

High voltage-resistant, insulated version	yes
Connection	Round conductor
Version for	Air-termination rod
Dimension	4000mm
Material	Fibre-glass-reinforced plastic
CO2 Footprint (GWP) Cradle-to-Gate	49,636 kg CO2e / 1 Piece
