Height-adjustable cassette for tube body, RKFRNUZD3, stainless steel
Type RKFRN2UZD3R7VS25
|Item no. 7409448
|EAN 4012195869634
Item no. / Type
7409448 / RKFRN2UZD3R7VS25
Nominal size for device installation units
R7
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette, decoupled from the floor, of nominal size R7, for tube bodies, for the installation of accessories in dry or wet-cleaned floors for indoor use, for mounting in underfloor boxes UZD350-3, either in conjunction with a mounting lid DUG350-3R7 or UGD350-3R7. Mounting takes place using height adjustment brackets (order separately) in the aluminium frame profile of the underfloor boxes.
Height-adjustable cassette for cord outlet, 3-compartment. Two APMT2 cover plates and one APMT5 can be installed. For the installation of two UT3 and one UT4 universal support for seven single accessories with support ring/support clamp or 10 Modul 45 devices. The tube body is not contained in the scope of delivery.
Height-adjustable cassette for cord outlet, 3-compartment. Two APMT2 cover plates and one APMT5 can be installed. For the installation of two UT3 and one UT4 universal support for seven single accessories with support ring/support clamp or 10 Modul 45 devices. The tube body is not contained in the scope of delivery.
Technical data

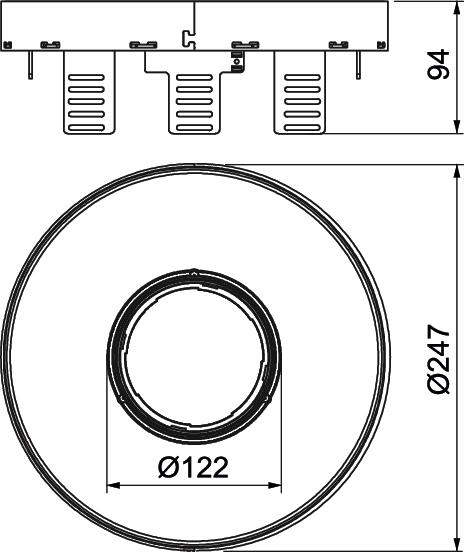

Dimensions
| Length | 274 mm |
|---|---|
| Width | 274 mm |
| Height | 94 mm |
| Dimension h | 94 mm |
Technical data
| Floor height, min. | 94 mm |
|---|---|
| Floor covering thickness | 25 mm |
| Number of installable devices | 10 |
| Decouplable | yes |
| Installation diameter | 275 |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Floor care | Wet |
| Installation depth | 104 mm |
| Cable outlet version | Lowerable tube body |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT3 / UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R7 |
| Approvals | VDE |
| Minimum installation depth E1 | 105 mm |
| Minimum installation depth E2 | 155 mm |
| Space for F1 connector | 30 mm |
| Space for F2 connector | 90 mm |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP44 |
| Number of universal supports | 2 x UT3, 1 x UT4 |
| Modul 45 device installation | 10th |
| Standard device installation | 7 |
| Floor cut-out / Mounting opening | Ø 275 |
| Internal dimensions, lid | 130x182 |
| Application when used | 6.101.3 Wet care |
| Application when unused | 6.101.2 Wet care |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 3,000 N |
| Version for | Round |
| Dimension | Ø275mm |
| Material | Stainless steel 1.4301 |
Environmental Data
16,3346 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 16,3346 kg CO2e / 1 Piece |
|---|
