Height adjustment bracket for installation in UZD350 for one round cassette
Type NW 350 RK
|Item no. 7410556
|EAN 4012195432784
Item no. / Type
7410556 / NW 350 RK
Smallest selling unit: 1 piece
1piece
piece
Description

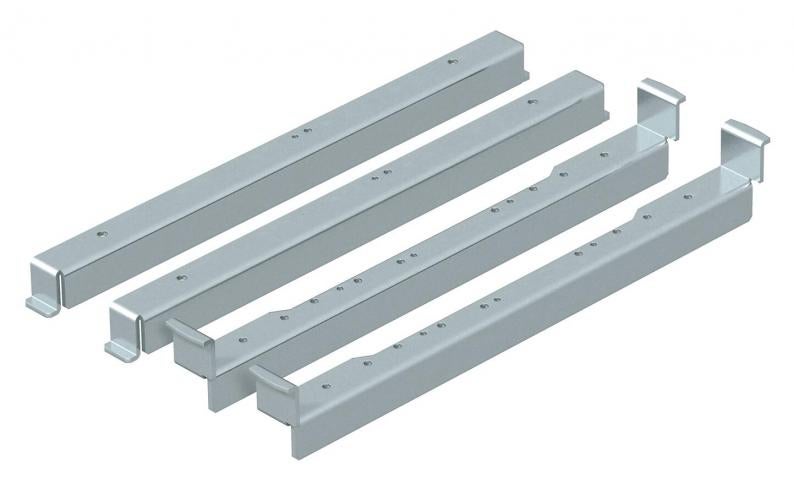

Height adjustment bracket to mount the round height-adjustable cassettes in the underfloor box, type UZD350.
With all the components necessary for mounting and height adjustment.
Height-adjustment bracket for mounting round, height-adjustable cassettes in the underfloor connection box of type UZD350.
The set includes all required components for mounting a round cassette of nominal size 9.
With all the components necessary for mounting and height adjustment.
Height-adjustment bracket for mounting round, height-adjustable cassettes in the underfloor connection box of type UZD350.
The set includes all required components for mounting a round cassette of nominal size 9.
Technical data
Technical data
| Decouplable | yes |
|---|---|
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Heavy-duty version | no |
| Approvals | VDE |
| Cover version | Round |
| ROHS-conformant | yes |
| Surface | Strip galvanised |
| Material | Steel |
| Product series | UZD Underfloor junction box |

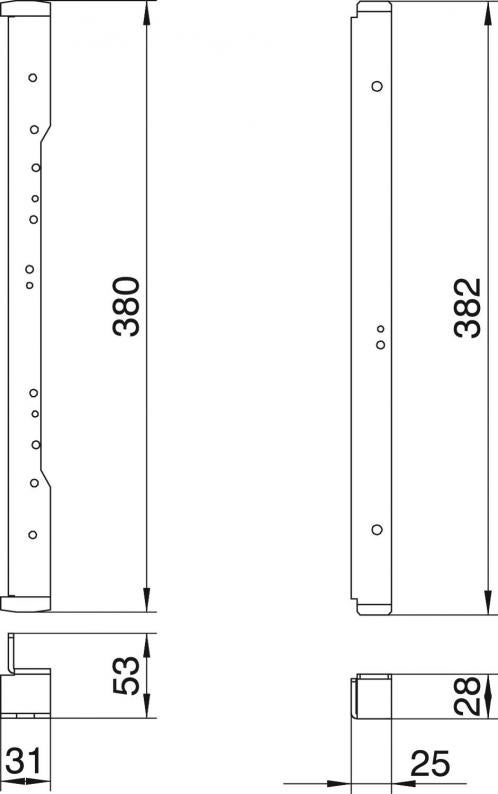

Dimensions
| Dimension h | 94 mm |
|---|
Environmental Data
5,9694 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,9694 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 5,9694 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
