G mesh cable tray Magic® 150 A4
Type G-GRM 150 100 A4 | Item no. 6005574 | EAN 4012195771654
Item no. / Type
6005574 / G-GRM 150 100 A4
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description

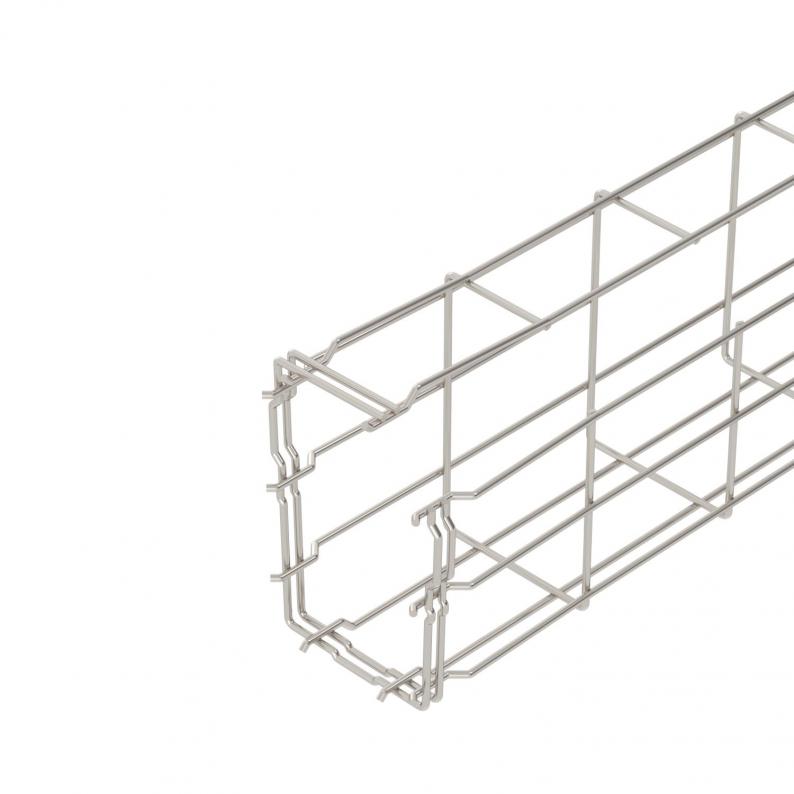

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Technical data

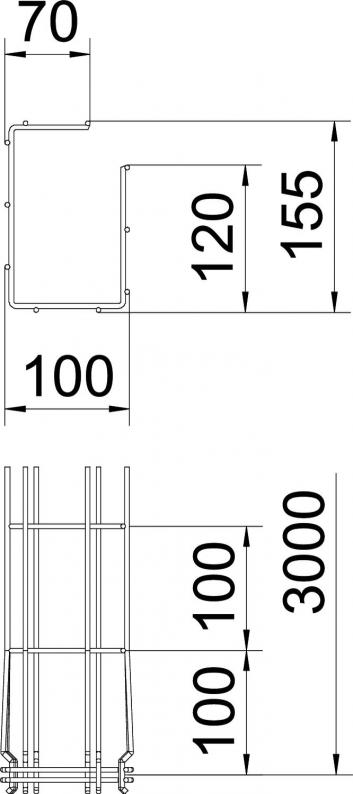

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 150 mm |
| Dimension A | 120 mm |
| Dimension B | 100 mm |
| Dimension H | 155 mm |
| Dimension C | 68 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 107 cm² |
| Rustproof steel, pickled | yes |
| Usable cross-section | 10700 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | G-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 150x100x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4401 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,3739 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,35 kN/m |
|---|---|
| Support spacing 2.5 m | 0,3 kN/m |
| Support spacing 1.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 0,5 kN/m |
