Joint connector A4
Type GSV 34 A4 | Item no. 6016648 | EAN 4012196120079
Item no. / Type
6016648 / GSV 34 A4
Surface
Bright, treated
Material
Stainless steel 1.4401
Smallest selling unit: 20 piece
20piece
Description

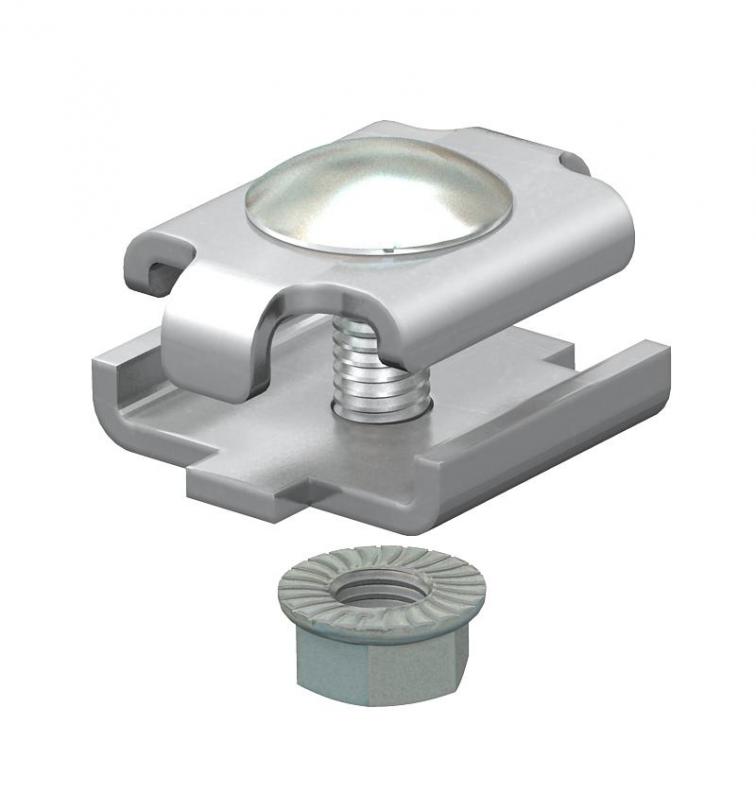

Screwed version of joint connector for mesh cable trays.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
Including screw of type FRS M6 x 20.
Technical data

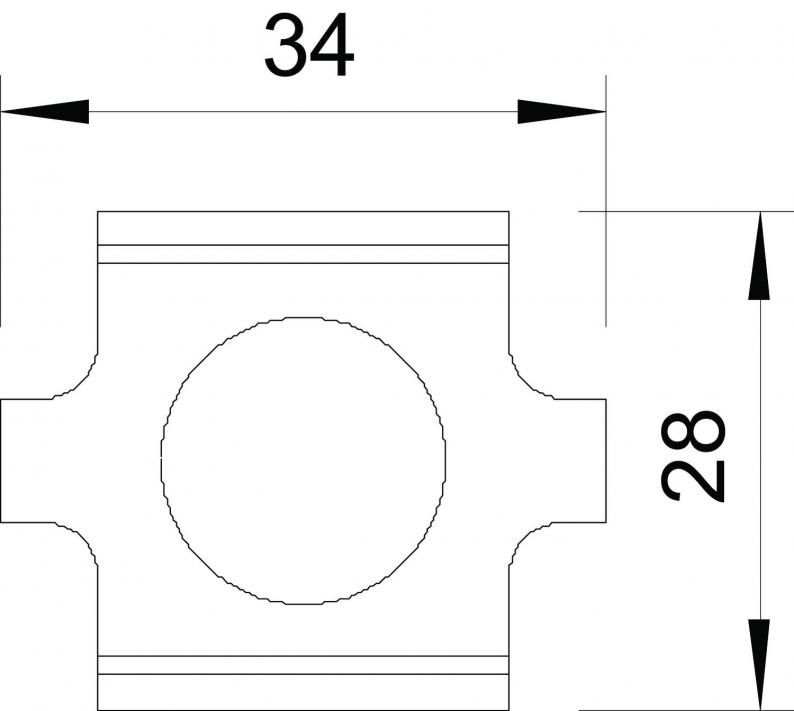

Dimensions
| Length | 34 mm |
|---|---|
| Width | 29 mm |
| Height | 24 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | yes |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 28 x 34 |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Surface | Bright, treated |
| Material | Stainless steel 1.4401 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2345 kg CO2e / 1 Piece |
