Frame cassette for inspection opening, RK, nominal size 250-3, brass

Frame cassette for inspection opening, RK, nominal size 250-3, brass

Type RK M2 10
|
Item no. 7405844
|
EAN 4012195105640
Show all variants
Item no. / Type
Floor covering thickness
Dimension h

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

"Blank" frame cassette for the creation of an inspection opening in the UZD250-3 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

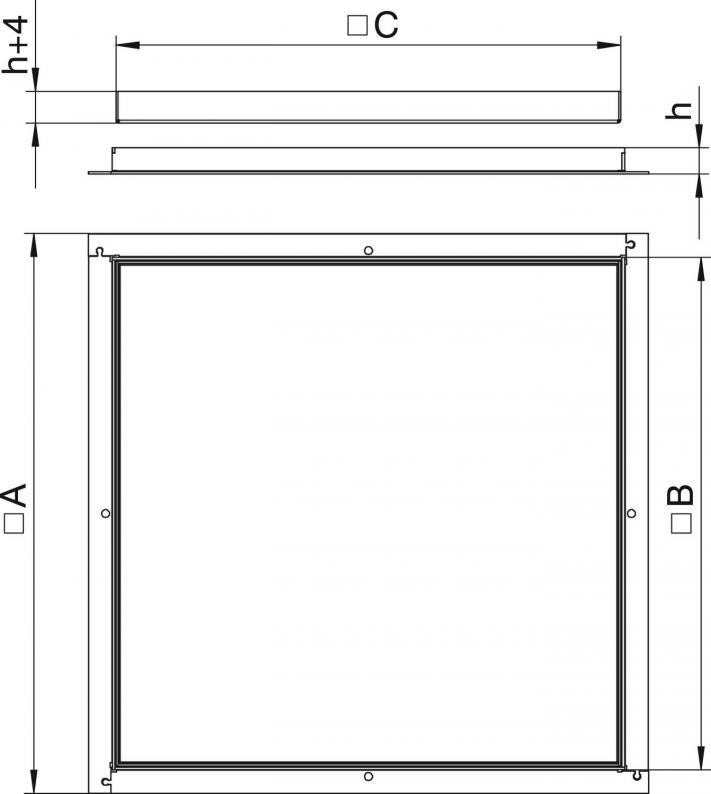

Dimensions

Dimension A324 mm
Dimension B288 mm
Dimension C282 mm
Dimension h10 mm

Technical data

Floor covering thickness8 mm
Floor careWet
Cable outlet versionLowerable tube body
Number of cable outlets0
Device support to accept mounting boxesno
Dimension282x282x10
MaterialBrass

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Floor covering thickness
Dimension h
RK M2 10
Item no.
7405844
Floor covering thickness
8
Dimension h
10
RK M2 20
Item no.
7405852
Floor covering thickness
18
Dimension h
20
RK M2 25
Item no.
7405856
Floor covering thickness
23
Dimension h
25
