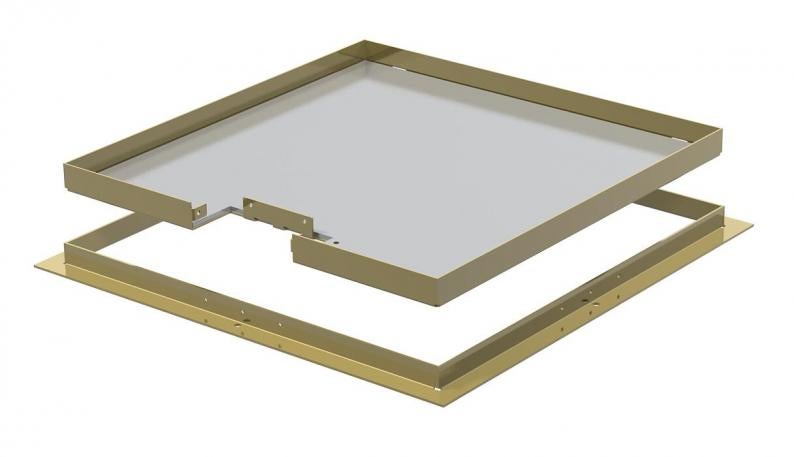

Frame cassette for cord outlet, RKS, nominal size 250-3, brass

Frame cassette for cord outlet, RKS, nominal size 250-3, brass

Type RKS 2M2 15
|
Item no. 7406538
|
EAN 4012195108764
Show all variants
Item no. / Type
7406538 / RKS 2M2 15
Floor covering thickness
13 mm
Dimension h
15 mm

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Frame cassette for cord outlet, for UZD250-3, for the installation of accessories in dry or wet-cleaned floors for indoor use.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

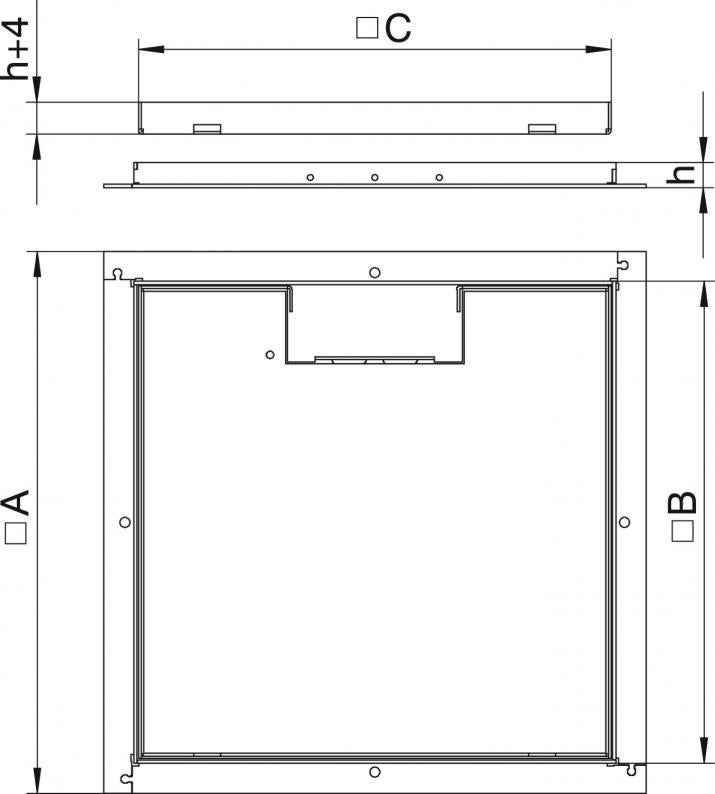

Dimensions

Dimension A324 mm
Dimension B288 mm
Dimension C282 mm
Dimension h15 mm

Technical data

Floor covering thickness13 mm
Floor careDry
Cable outlet versionSwivellable cord outlet
Number of cable outlets1
Device support to accept mounting boxesno
Dimension282x282x15
MaterialBrass

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

RKS 2M2 15
Item no.
7406538
Floor covering thickness
13
Dimension h
15
