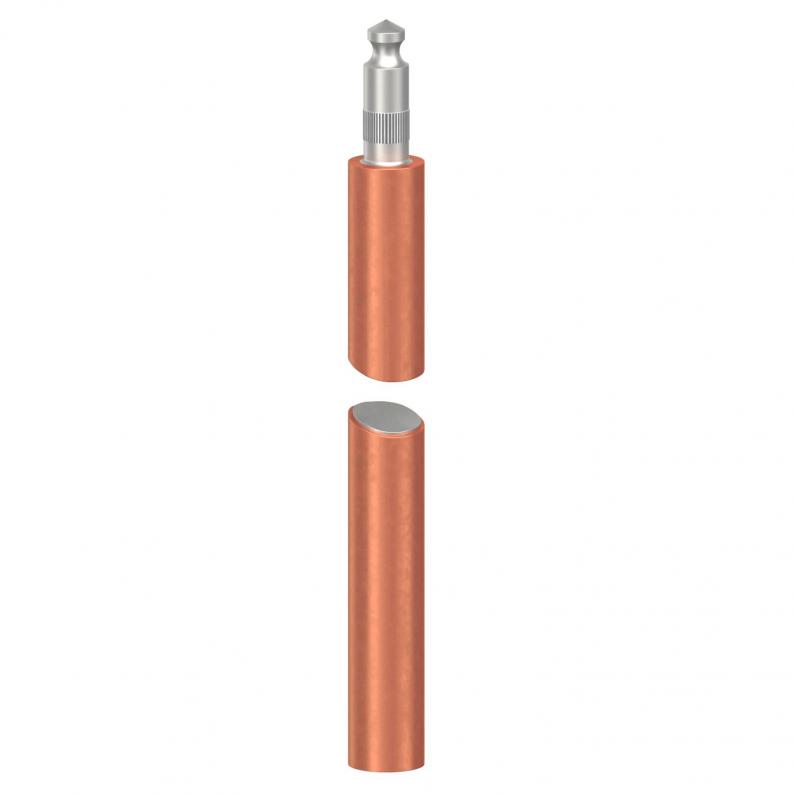

Earth rod with copper sheath
Type 219 20 BP CU
|Item no. 5000500
|EAN 4012196336340
Item no. / Type
5000500 / 219 20 BP CU
Length
1500 mm
External diameter
20 mm
Material
Steel
Smallest selling unit: 5 piece
5piece
piece
Description
• "BP" system (Bundespost)
• Made of steel with a copper jacket of min. 0.25 mm
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Tensile strength min. 600 N/mm²
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Made of steel with a copper jacket of min. 0.25 mm
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Tensile strength min. 600 N/mm²
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
Technical data

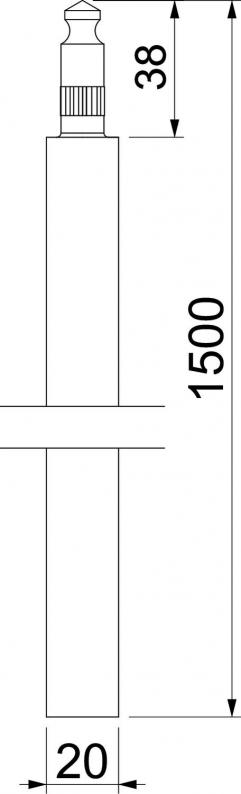

Dimensions
| Length | 1500 mm |
|---|---|
| Dimension L | 1500 mm |
| Dimension D | 20 mm |
Technical data
| Profile type | Round D=20 mm |
|---|---|
| External diameter | 20 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 7,9 kA |
| Lightning current carrying capacity | H/100 kA |
| Dimension | 1,5m |
| Surface | Copper-plated |
| Material | Steel |
Environmental Data
7,093 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 7,093 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 3042200
Driving head for ST, BP and OMEX earth rodsType
1820 20
Smallest selling unit: 1 piece
1piece
piece
Item no. 5001560
Connection clamp for earth rod or cablesType
2745 20 MS
Smallest selling unit: 5 piece
5piece
piece
