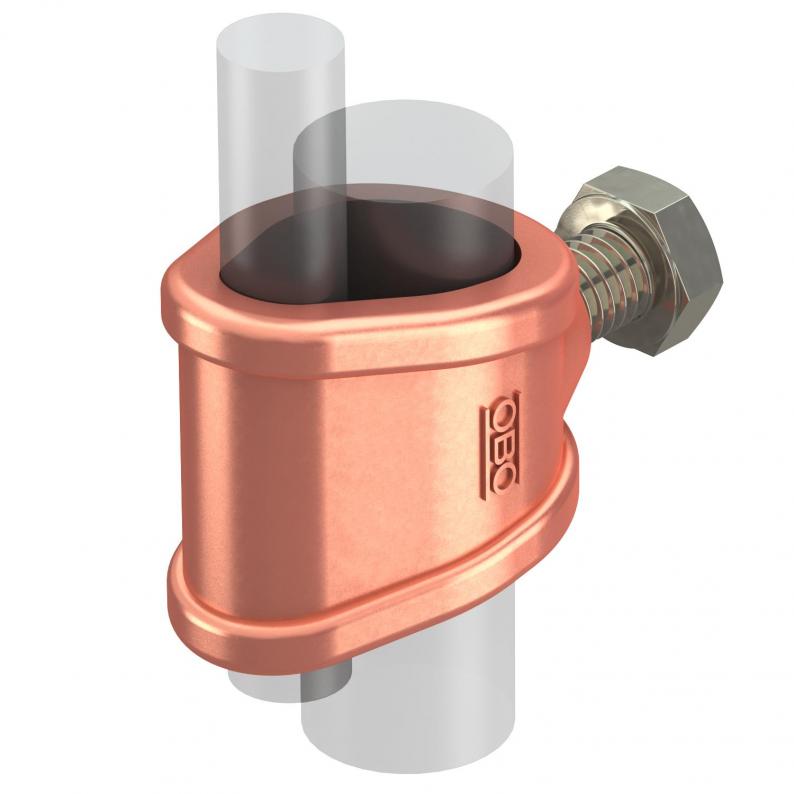

Connection clamp for earth rod or cables
Type 2745 20 MS | Item no. 5001560 | EAN 4012195372851
Item no. / Type
5001560 / 2745 20 MS
Smallest selling unit: 5 piece
5piece
Description
• For earth rods Ø 20 or conductors of 95 mm²
• For round conductor attachments Rd 7–12.5 with hexagonal bolts M10 x 25
• For round conductor attachments Rd 7–12.5 with hexagonal bolts M10 x 25
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type | Connection sleeve |
| for earth rods | 20 mm |
| Fit | 7-12,5/S95 mm² mm |

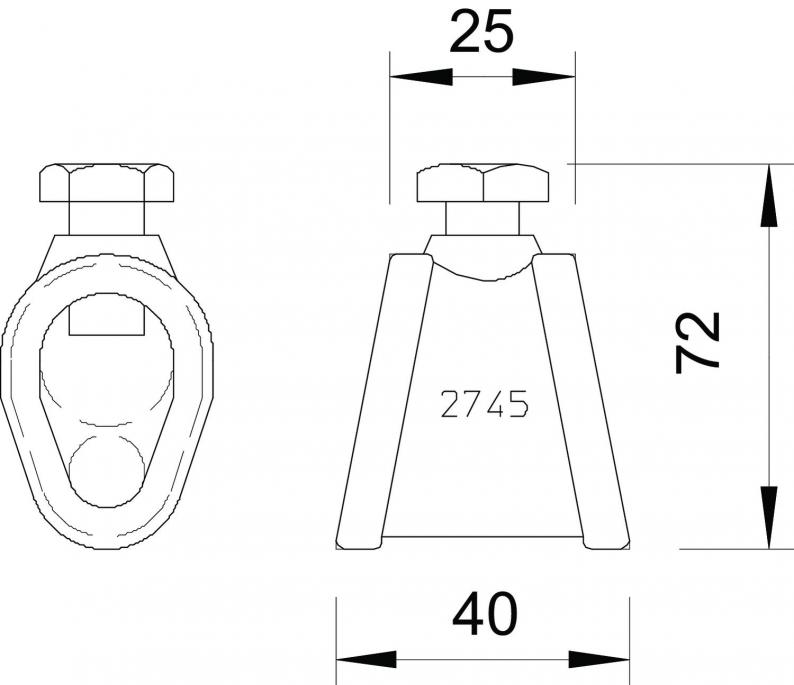

| Dimension | 20mm |
| Surface | Copper-plated |
| Material | Brass |
