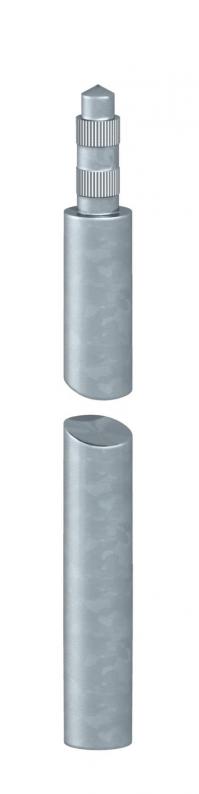

Earth rod for standard applications, hot galvanised, 20 mm

Earth rod for standard applications, hot galvanised, 20 mm

Type 219 20 ST FT | Item no. 5000742 | EAN 4012195018049

Show all variants
Item no. / Type
Length
External diameter
Material
Steel

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• High corrosion resistance

• Zinc support approx. 130 µm

• With peg and bore for linking together

• Round pegs with two knurls

• Conforms to the requirements according to VDE 0185-305 (IEC 62305)

• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

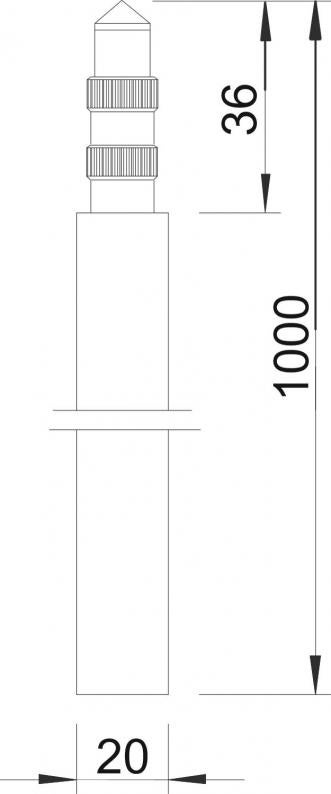

Dimensions

Length1000 mm

Technical data

Profile typeRound D=20 mm
External diameter20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)7,9 kA
Lightning current carrying capacityH/100 kA
Dimension1,0m
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate7,1416 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
1819 20BP

Smallest selling unit: 5 piece

Type
1820 20

Smallest selling unit: 1 piece

Type
2710 20 FT

Smallest selling unit: 5 piece

Variants

Length
219 20 ST FT
Item no.
5000742
Length
1000
External diameter
20
Material
Steel
219 20 ST FT
Item no.
5000750
Length
1500
External diameter
20
Material
Steel
