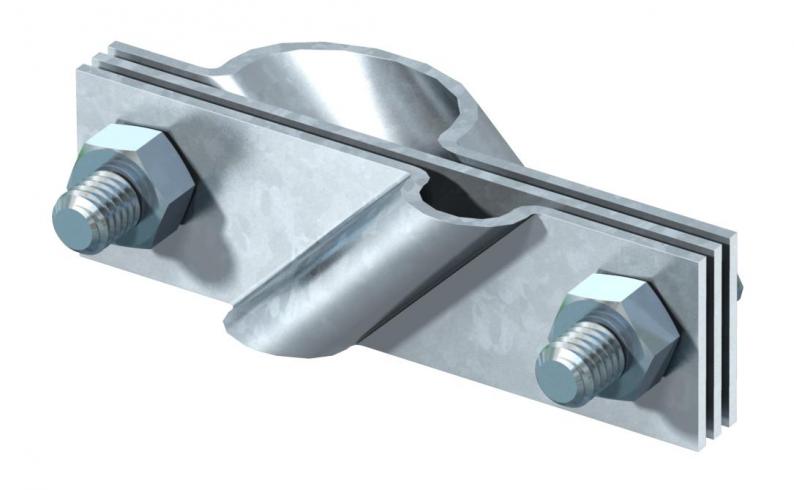

Connection clamp for earth rod, universal FT
Type 2760 20 FT | Item no. 5001641 | EAN 4012195372912
Item no. / Type
for earth rods
Smallest selling unit: 5 piece
5piece
Description

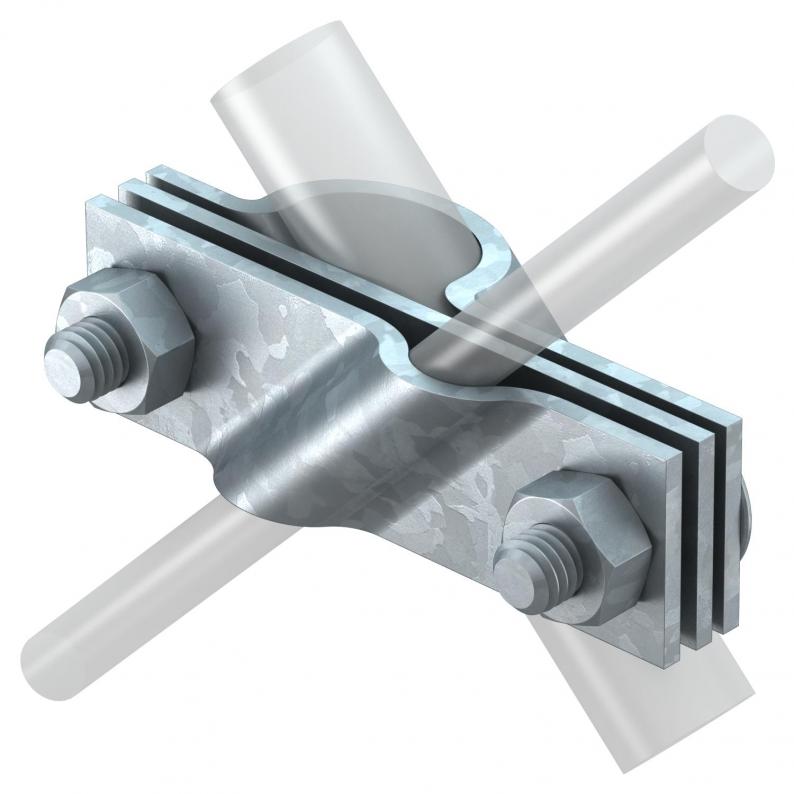

• Suitable for attaching round conductors Rd 8-10 or flat conductors to FL 40
• With separator plate
• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10
• With separator plate
• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10
Technical data
Technical data
| Intermediate plate | yes |
|---|---|
| Earthing connection diameter | 20 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Suitable for round conductor diameters, min. | 8 mm |
| Type | Connection clip |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 7,9 kA |
| for earth rods | 20 mm |
| Fit | Rd 8-10/FL40 mm |
| Dimension | 20mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, max. | 10 mm |
| Clamping range, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7017 kg CO2e / 1 Piece |

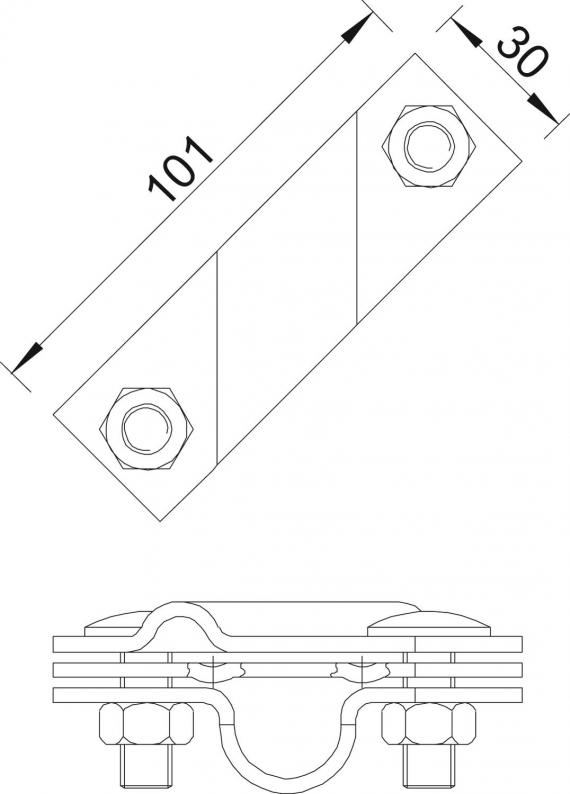

Dimensions
| Dimension A | 101 mm |
|---|
