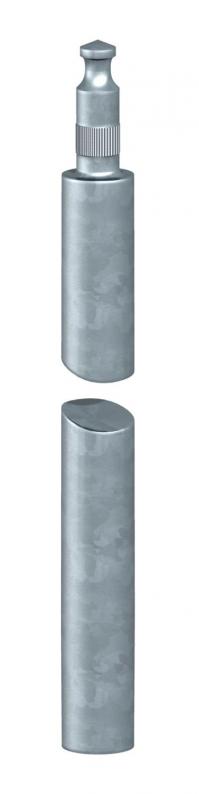

Earth rod BP, hot galvanised, 20 mm

Earth rod BP, hot galvanised, 20 mm

Type 219 20 BP FT | Item no. 5000947 | EAN 4012195371892

Show all variants
Item no. / Type
Length
External diameter
Material
Steel

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• FT version with zinc coating approx. 130 µm
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

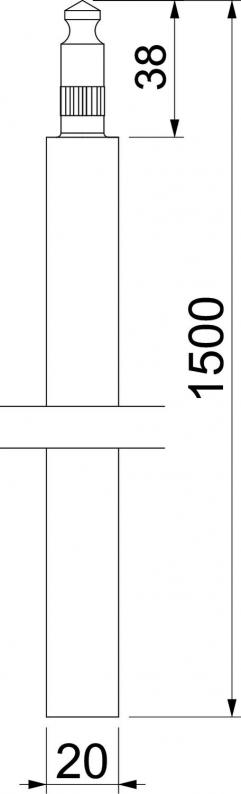

Dimensions

Length1500 mm
Dimension L1500 mm

Technical data

Profile typeRound D=20 mm
External diameter20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)7,9 kA
Lightning current carrying capacityH/100 kA
Dimension1,5m
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate10,1912 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
1819 20BP

Smallest selling unit: 5 piece

Type
1820 20

Smallest selling unit: 1 piece

Type
2710 20 FT

Smallest selling unit: 5 piece

Variants

External diameter
219 20 BP FT
Item no.
5000947
Length
1500
External diameter
20
Material
Steel
219 25 BP FT
Item no.
5000955
Length
1500
External diameter
25
Material
Steel
