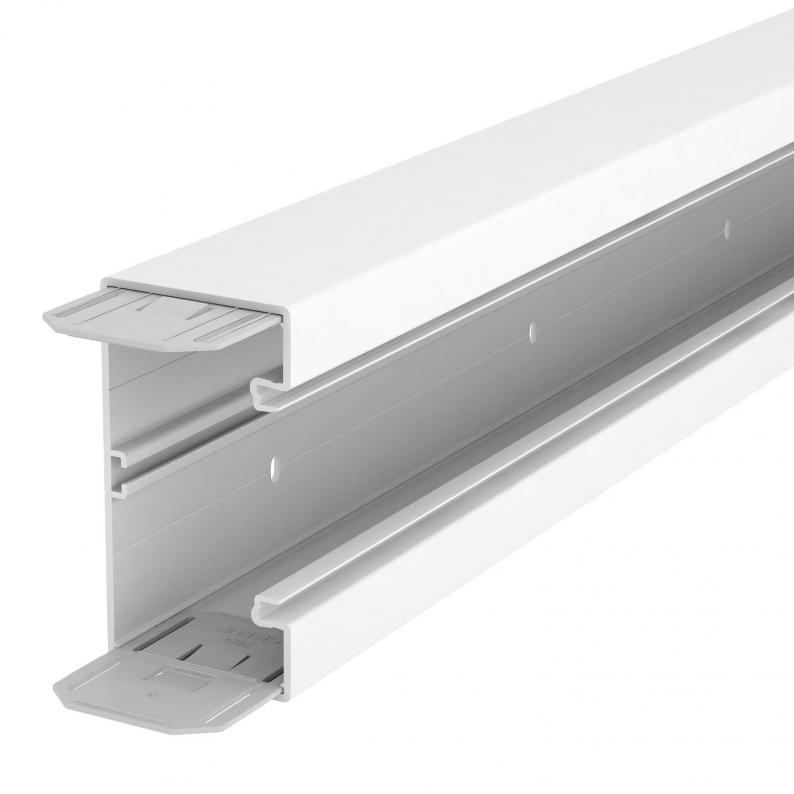

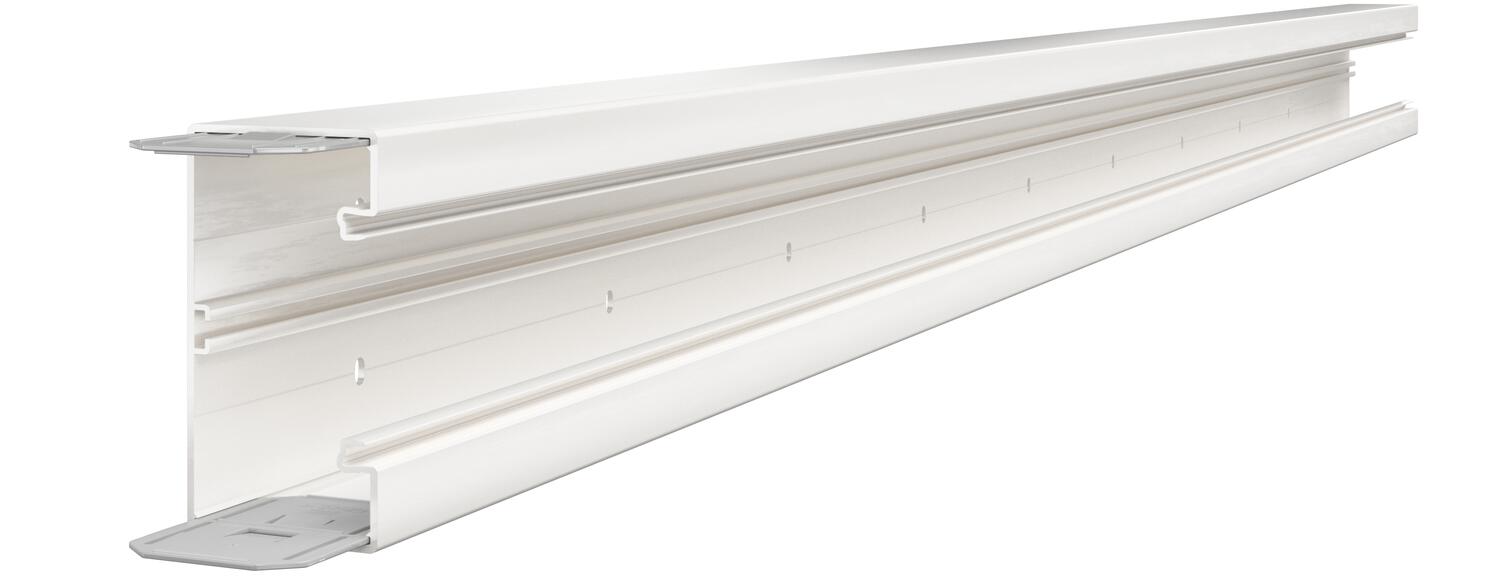

Device installation trunking Rapid 80, trunking width 130, trunking height 70

Device installation trunking Rapid 80, trunking width 130, trunking height 70

Type GK-70130RW
|
Item no. 6274500
|
EAN 4012195656739
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

GK device installation trunking, made of lead-free PVC, suitable for installing directly on the wall or on wall panels. Fastening takes place using the perforation in the trunking. The GK device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side. The cover must be ordered separately.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • GEK-K device installation trunking, trunking depth 70 mm
  • Wall mounting
  • Bracket mounting
  • Track width 80 mm
  • Devices
  • Protective contact socket
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

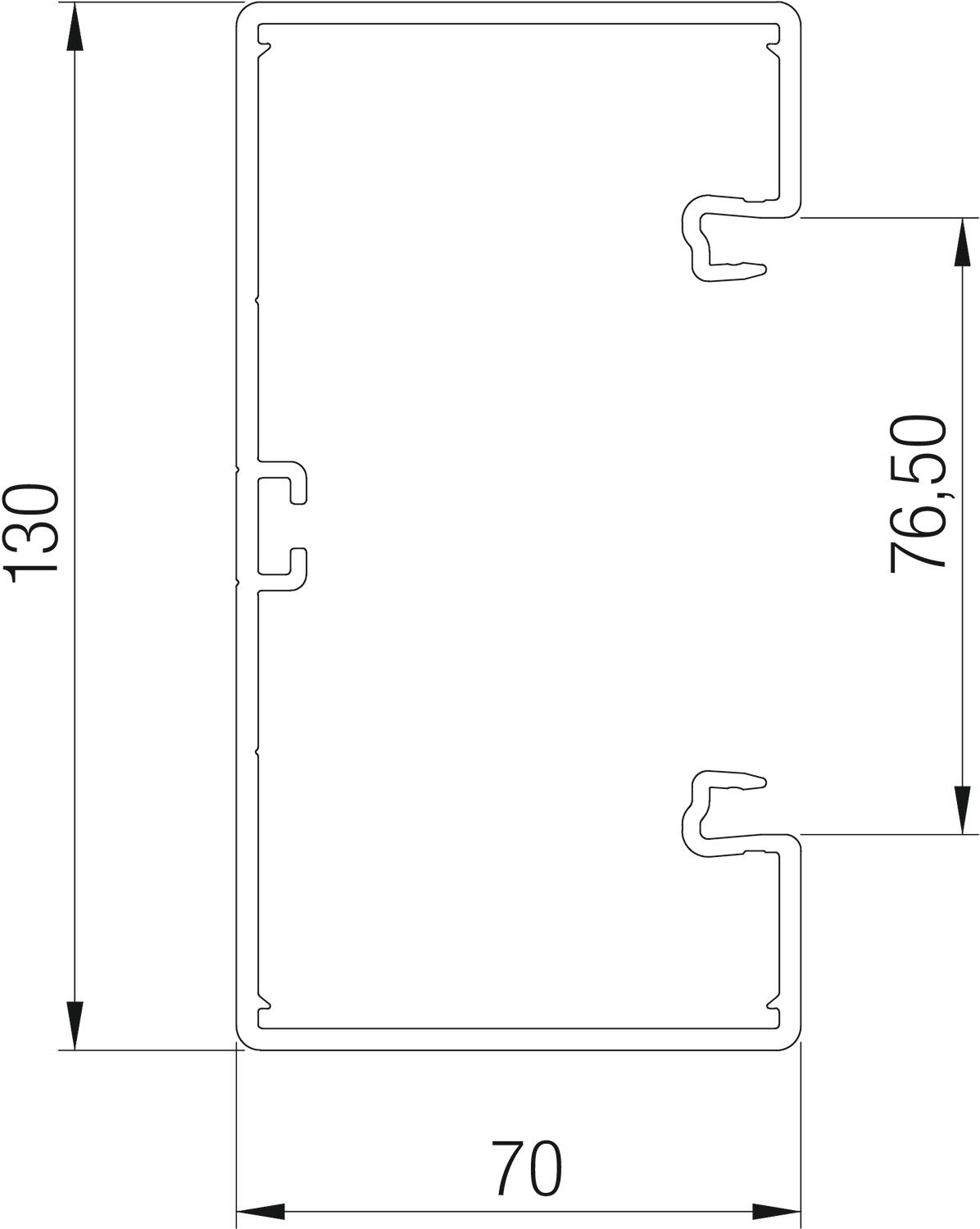

Dimensions

Length2000 mm
Width130 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section7600 mm²
Halogen-freeno
Number of insertable partitions1
Cable retaining clipno
Protective filmyes
Duct connectoryes
Protection ratingIP30
Symmetricalyes
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous C profile
Cover mounting typeInternal
Protection rating IK codeIK08
Cover suppliedno
Base perforationWith base perforation
Cover width76,5 mm
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension70x130x2000
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

3,0644 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate3,0644 kg CO2e / 1 Meter

Accessories

System accessories
Type
71GD6

Smallest selling unit: 5 piece

piece

Type
71GD7-2

Smallest selling unit: 2 piece

piece

Item no. 6288790

7ZE strain relief
Type
7ZE

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-70130RW
Item no.
6274500
Length
2000
Colour
Pure white; RAL 9010
GK-70130CW
Item no.
6274501
Length
2000
Colour
Cream; RAL 9001
GK-70130LGR
Item no.
6274502
Length
2000
Colour
Light grey; RAL 7035
GK-70130GR
Item no.
6274506
Length
2000
Colour
Stone grey; RAL 7030
