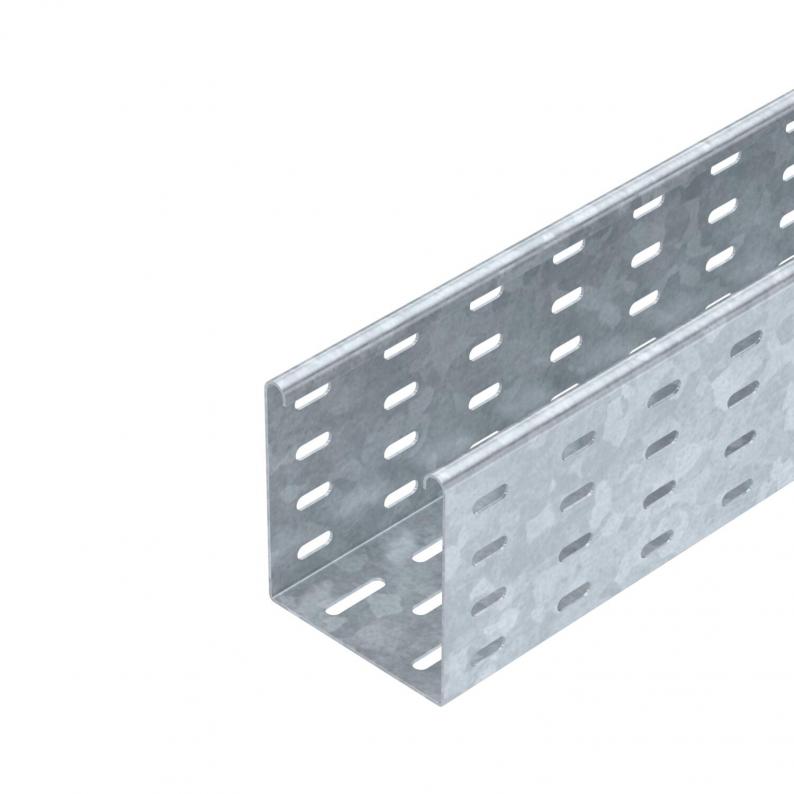

Cable tray SKS 110 FT

Cable tray SKS 110 FT

Type SKS 110 FT | Item no. 6061605 | EAN 4012196062539

Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

SKS 110 = heavy-duty cable tray system with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width100 mm
Height110 mm
Maß W100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section108 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section10800 mm²
With coverno
Dimension110 x 100
Dimension110x100x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Supplied accessoriesRLVL 110 straight connector
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate8,891 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m2,4 kN/m
Support spacing 2.5 m1,76 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 3.5 m0,84 kN/m
Support spacing 4.0 m0,8 kN/m
Support spacing 1.5 m3 kN/m
Load diagram, cable tray, type SKS 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (4)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

System accessories
Type
RLVL 110 FT

Smallest selling unit: 10 piece

Item no. 7070306

Joint plate DD
Type
SSLB 100 DD

Smallest selling unit: 20 piece

Type
DRL 100 FT

Smallest selling unit: 3 m

Variants

Width
SKS 110 FT
Item no.
6061605
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 120 FT
Item no.
6061621
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 130 FT
Item no.
6061656
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 140 FT
Item no.
6061672
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
SKS 150 FT
Item no.
6061702
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
