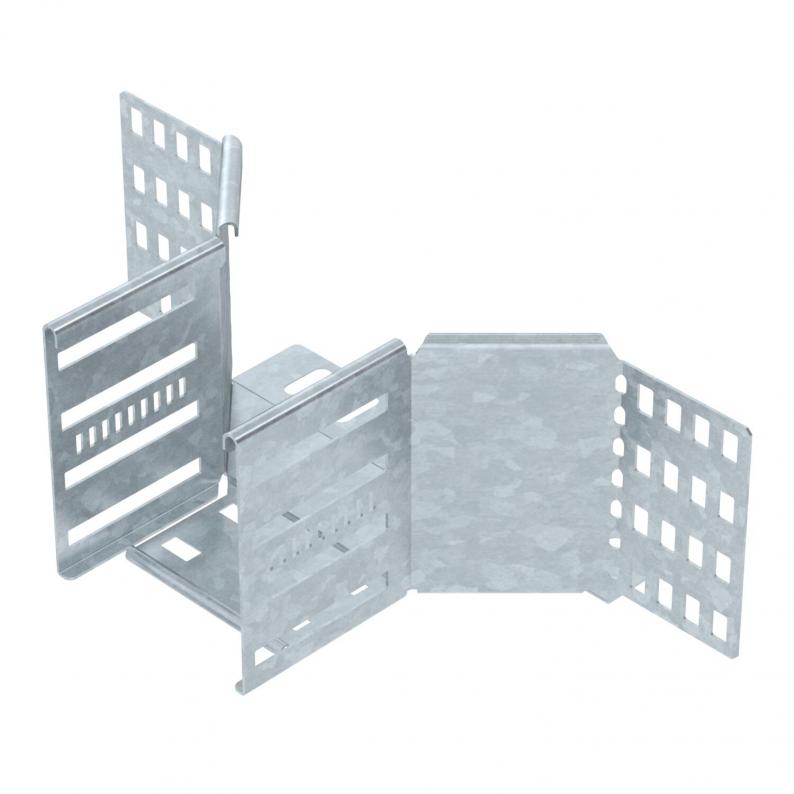

Add-on tee 110 FT

Add-on tee 110 FT

Type RAA 110 FT | Item no. 6042251 | EAN 4012197342753

Show all variants
Item no. / Type
Width
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Departing width100 mm
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension110x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts18 St.
CO2 Footprint (GWP) Cradle-to-Gate1,6835 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)

Accessories

System accessories
Mounting accessories

Item no. 6042431

Cover for add-on tee DD
Type
RAAD 100 DD

Smallest selling unit: 1 piece

Variants

Width
RAA 110 FT
Item no.
6042251
Width
100
Colour
zinc
RAA 115 FT
Item no.
6042253
Width
150
Colour
zinc
RAA 120 FT
Item no.
6042255
Width
200
Colour
zinc
RAA 130 FT
Item no.
6042257
Width
300
Colour
zinc
RAA 140 FT
Item no.
6042259
Width
400
Colour
zinc
RAA 150 FT
Item no.
6042261
Width
500
Colour
zinc
RAA 160 FT
Item no.
6042263
Width
600
Colour
zinc
