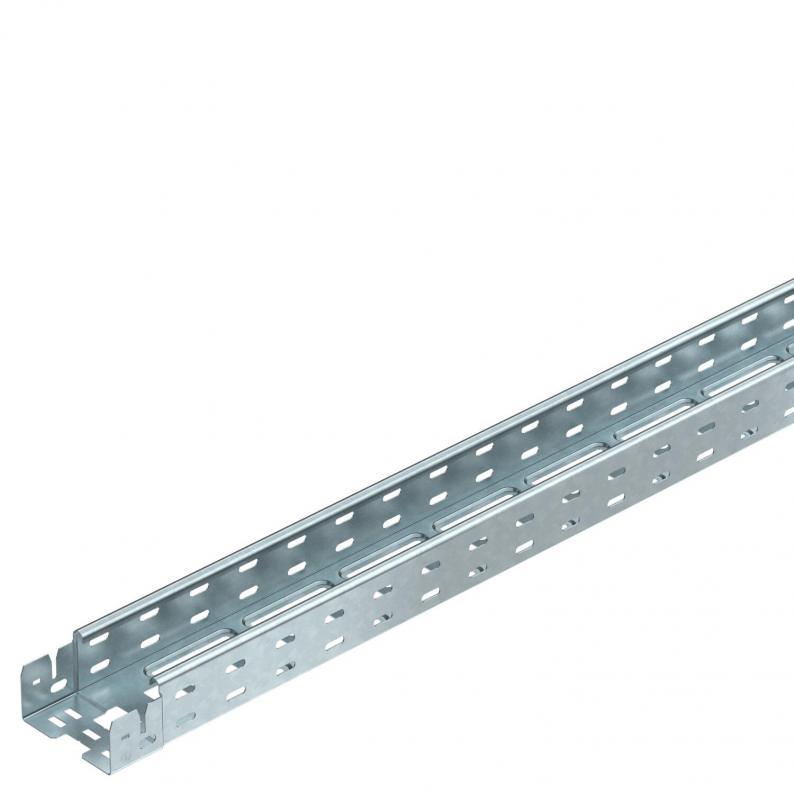

Cable tray MKS-Magic® 60 FT

Type MKSM 610 FT | Item no. 6059018 | EAN 4012195830023

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6059018 / MKSM 610 FT

Maintain electrical functions

Surface

Hot-dip galvanised

Material

Steel

Colour

zinc

Smallest selling unit: 3 m

Description Technical data Downloads Accessories Variants

Description

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Continuous equipotential bonding is guaranteed without additional components.

Technical data

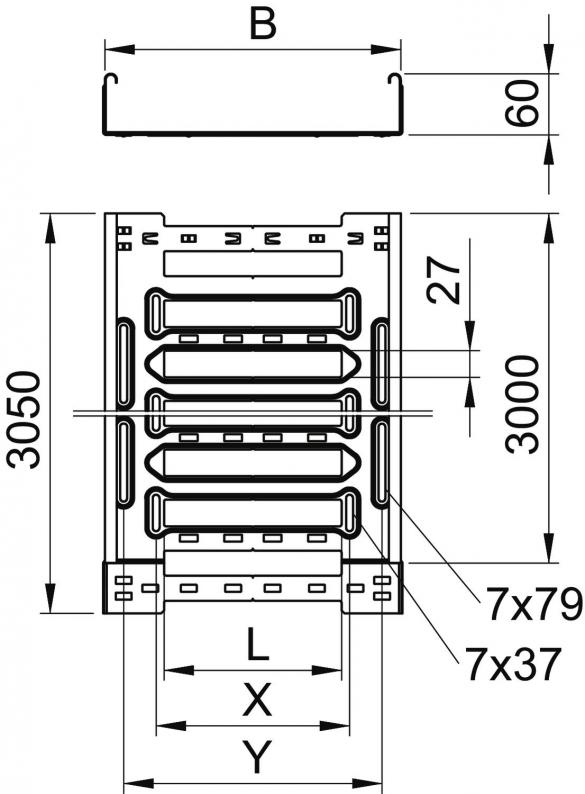

Dimensions

Length	3050 mm
Width	100 mm
Height	60 mm
Dimension y	62 mm
Dimension L	30 mm
Dimension B	100 mm

Technical data

Maintain electrical functions	no
Side perforation	yes
Connector version	Integrated connector
Wide-span version	no
Usable cross-section	58 cm²
Rustproof steel, pickled	no
Plate thickness	1 mm
Mounting perforation in base	yes
NATO hole pattern	no
Usable cross-section	5800 mm²
With cover	no
Dimension	60x100x3050
Surface	Hot-dip galvanised
Material	Steel
Colour	zinc
Sprinkler system use	yes
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Load test type according to IEC 61537	Type II
Usable length	3000 mm
Type of connector, cable support system	Click fastening
CO2 Footprint (GWP) Cradle-to-Gate	4,4733 kg CO2e / 1 Meter
