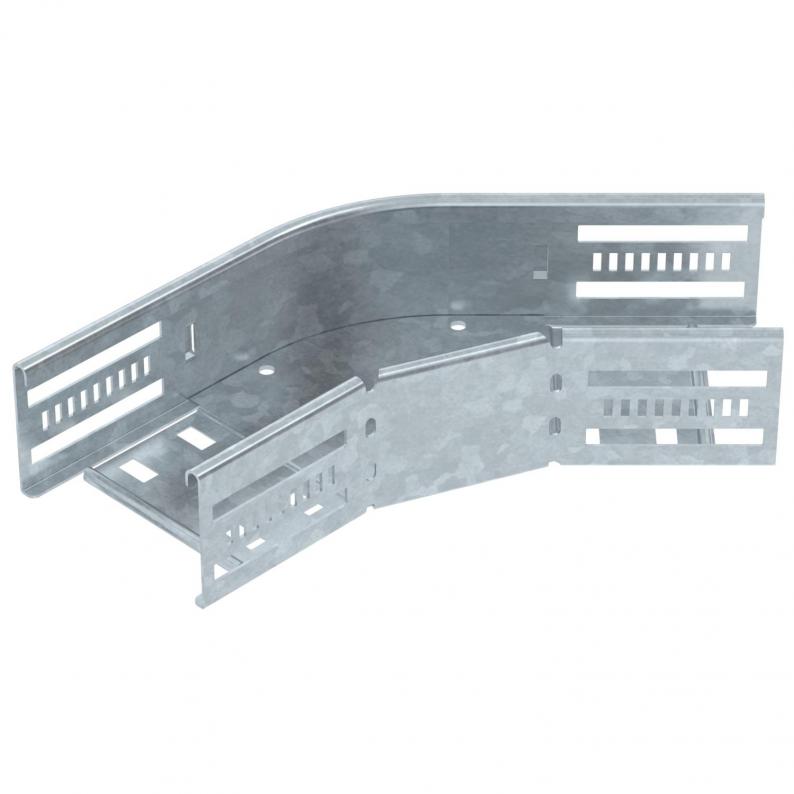

45° bend 60 FT

45° bend 60 FT

Type RB 45 610 FT | Item no. 6036130 | EAN 4012197345822

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

45° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
Mounting perforation in baseyes
NATO hole patternno
Material thickness, floor plate0,8 mm
Bend (angle)45°
Change of directionHorizontal
With coverno
TypeBend, rigid
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts10 St.
CO2 Footprint (GWP) Cradle-to-Gate1,5373 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Mounting accessories

Item no. 6036450

Cover, 45° bend DD
Type
RBD 45 100 DD

Smallest selling unit: 1 piece

Variants

Width
RB 45 610 FT
Item no.
6036130
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 615 FT
Item no.
6036132
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 620 FT
Item no.
6036134
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 630 FT
Item no.
6036136
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 640 FT
Item no.
6036138
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 650 FT
Item no.
6036140
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 660 FT
Item no.
6036142
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
