Cable tray, marine standard, ALU
Type MKR 15 125 ALU | Item no. 6045731 | EAN 4012196382156
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Material
Aluminium
Smallest selling unit: 2 m
2m
Description
Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
Technical data

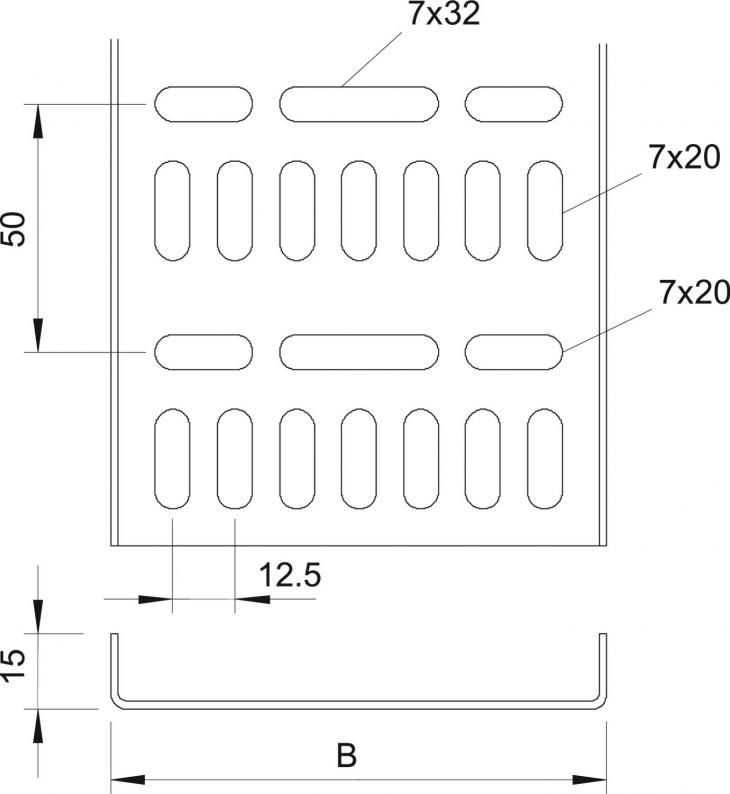

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 125 mm |
| Height | 15 mm |
| Dimension B | 125 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | yes |
| With cover | no |
| Dimension | 15 x 125 |
| Dimension | 15x125x2000 |
| Material | Aluminium |
| Colour | aluminium |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,5088 kg CO2e / 1 Meter |
Loads
| Support spacing 1.0 m | 0,35 kN/m |
|---|---|
| Support spacing 1.5 m | 0,1 kN/m |
