Screw connector ALU
Type MKR SV ALU | Item no. 6066248 | EAN 4012196517343
Item no. / Type
6066248 / MKR SV ALU
Colour
aluminium
Smallest selling unit: 25 piece
25piece
Description

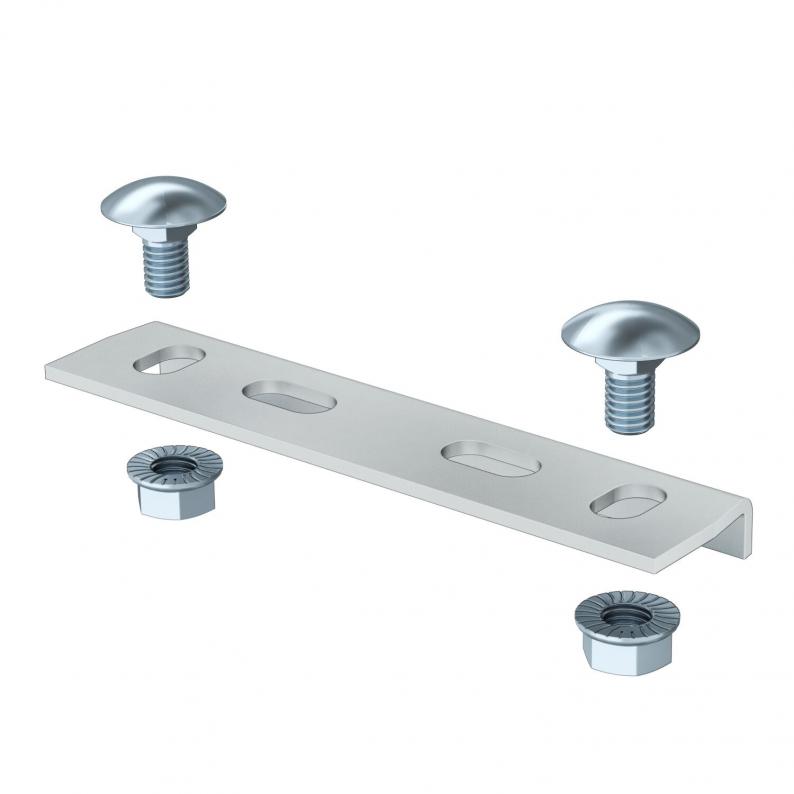

Straight connector for straight connection of cable trays, according to the marine standard, and fittings with a side height of 15 mm.
Technical data
Dimensions
| Length | 100 mm |
|---|---|
| Width | 23 mm |
| Height | 8,5 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 15 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 16x29x60 |
| Material | Aluminium |
| Colour | aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,352 kg CO2e / 1 Piece |
