45° bend 60 FT
Type RB 45 610 FT | Item no. 7066112 | EAN 4012196990924
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

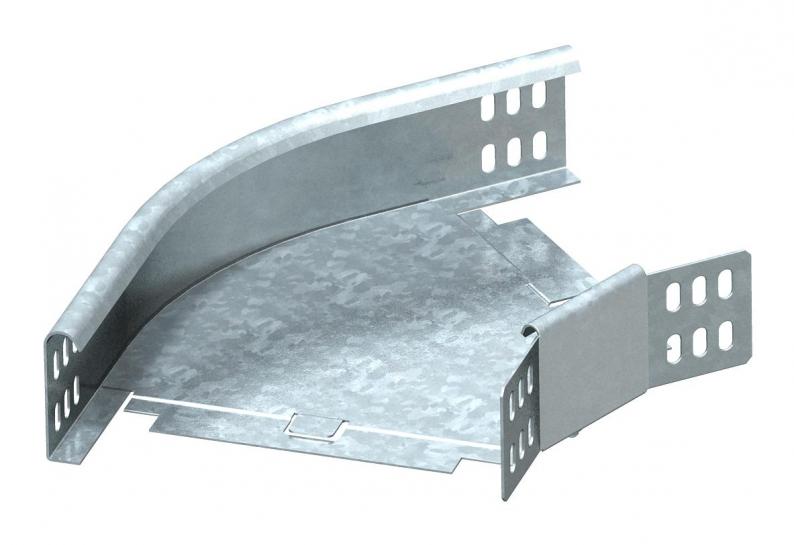

45° bend, horizontal, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. The WKV 35 angle connector is designed for 90° bends and can be adjusted to 45° on site.
Including appropriate fastening material.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RB 45 610 FT
100
Hot-dip galvanised
Steel
7066112
RB 45 615 FT
150
Hot-dip galvanised
Steel
7066158
RB 45 620 FT
200
Hot-dip galvanised
Steel
7066228
Width
RB 45 610 FT
Item no.
7066112
Width
100
Surface
Hot-dip galvanised
Material
Steel
RB 45 615 FT
Item no.
7066158
Width
150
Surface
Hot-dip galvanised
Material
Steel
RB 45 620 FT
Item no.
7066228
Width
200
Surface
Hot-dip galvanised
Material
Steel
