Trunking cover, smooth 2000 | Pure white; RAL 9010
morepic-1 morepic-2

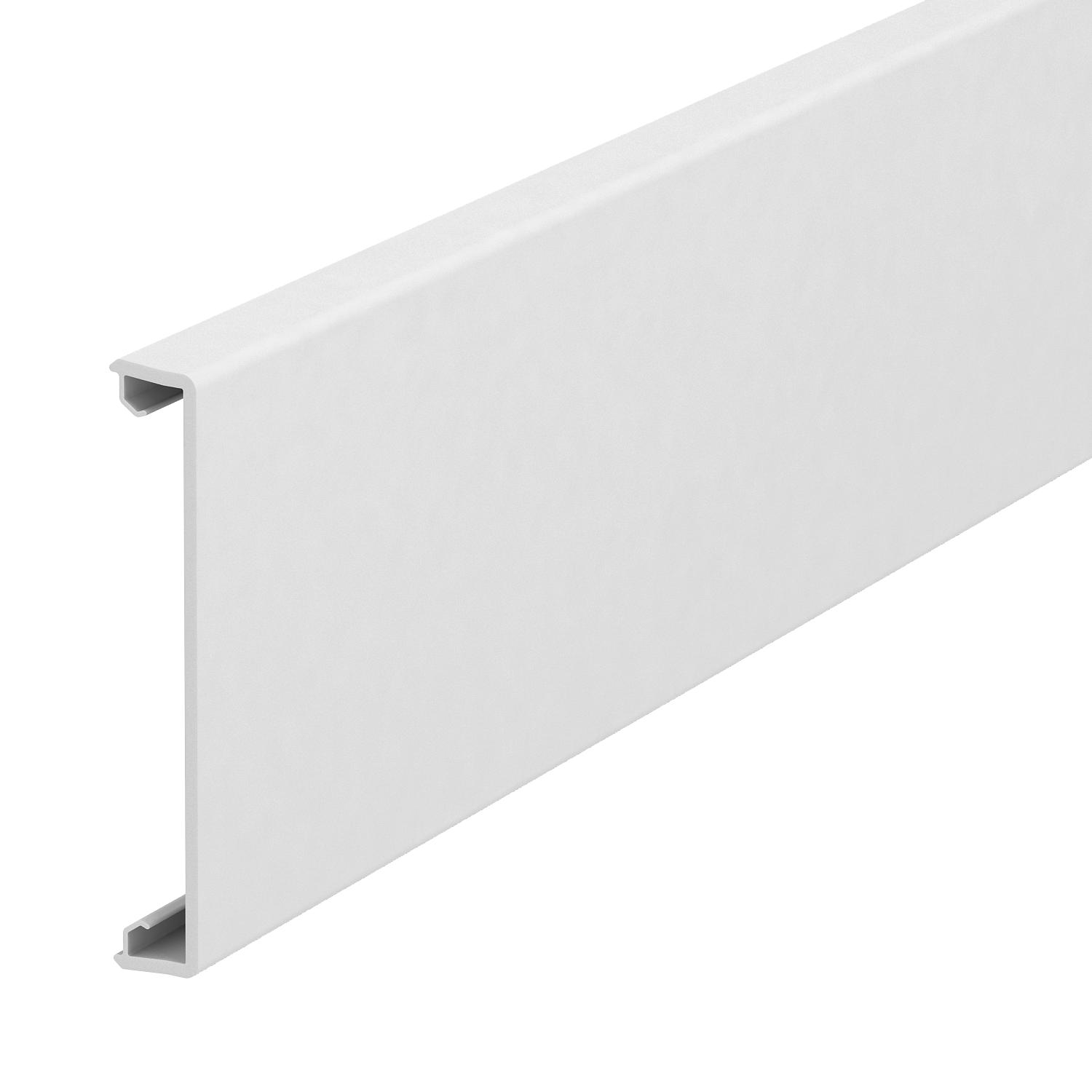

Trunking cover, smooth

Item no. 6114210 | EAN 4012196450831

6114210 / GKH-OTGRW
2000 mm
Pure white; RAL 9010
Product description

Product description

Smooth trunking cover made of halogen-free PC/ABS, for closing device installation trunking with 80 mm system opening.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cover mounting type Internal
Dimension 70x2000
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Version for Smooth

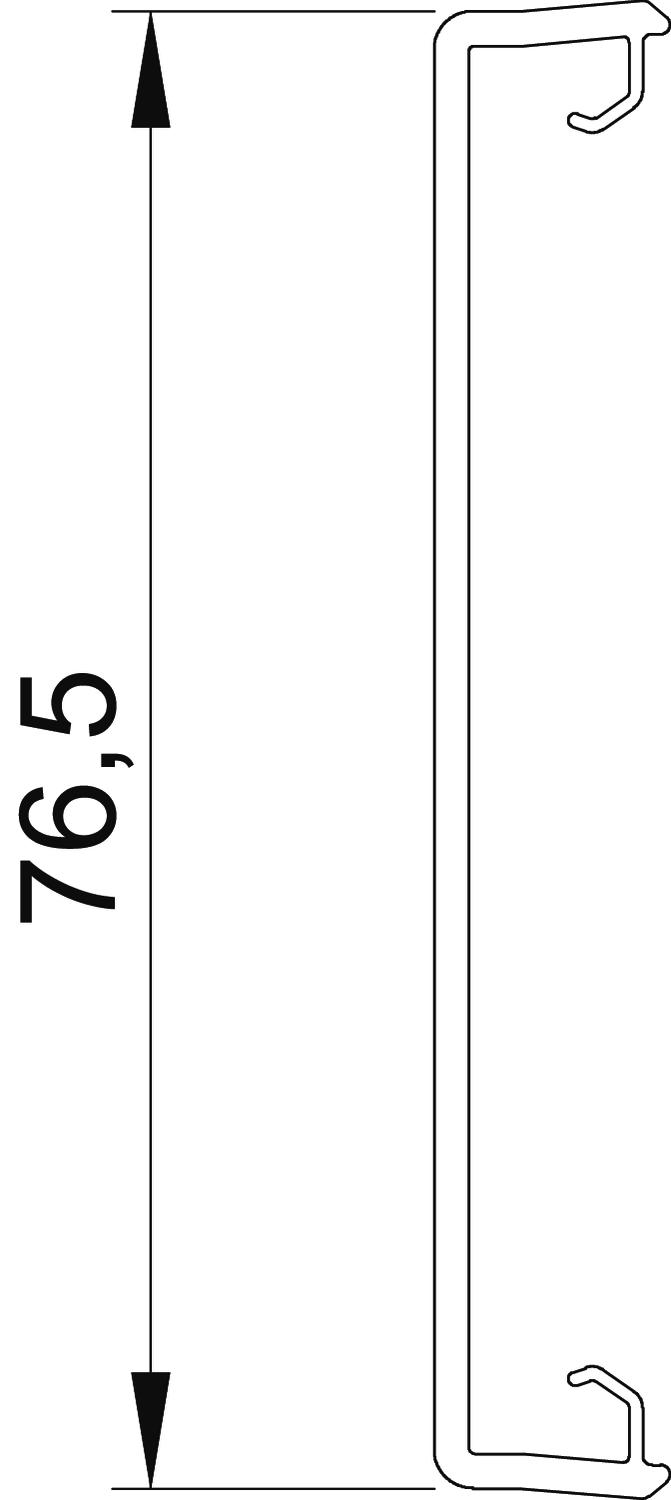

Dimensions

Height 12 mm
Length 2000 mm
Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GKH-OTGRW 2000 mm Pure white; RAL 9010 6114210
2 m
Downloads

Download

Download

Declaration of conformity GKH-OTGRW / 6114210 , 0.13MB , pdf
Download
UK Declaration of Conformity GKH-OTGRW / 6114210 , 0.14MB , pdf
Download
REACH Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdf
Download
RoHS Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
