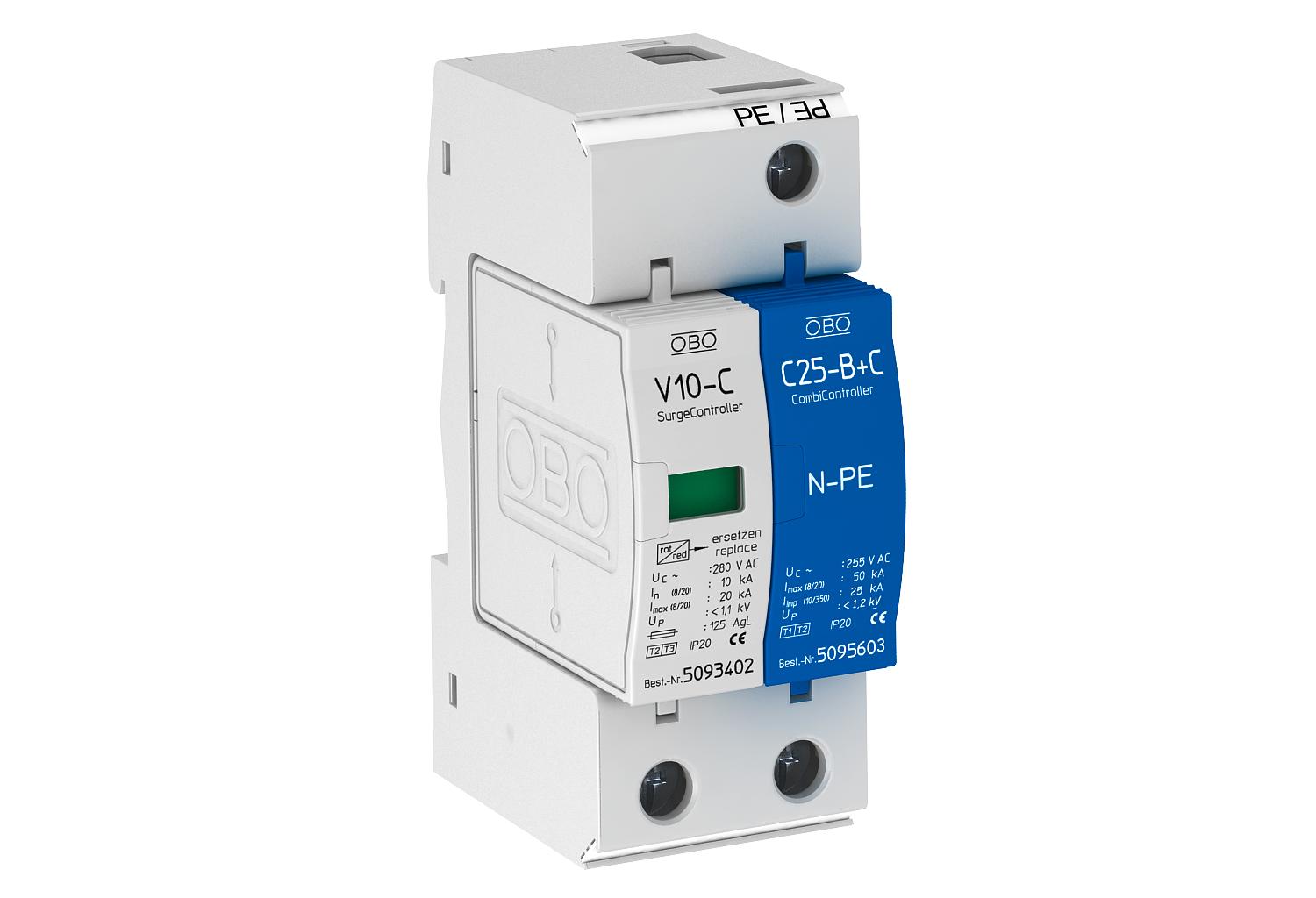

Surge arrester V10 1-pole + NPE 280 V

Item no. 5093418 | EAN 4012195382799

280
IP20
Product description

Product description

Surge arrester, type 2+3

• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Suitable for TN-S and TT network systems
• Incl. thermal and dynamic cut-off unit
• With visual display of defects
• High current conductivity and long service life
• Labelled connections

Application example: Residential buildings, single-family homes
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Transition from LPZ 1 to LPZ 3
  • Protection device to DIN EN 61643-11 or IEC 61643-11
Technical data

Technical data

Blow-out no
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Dimension 280V
Installation type DIN rail 35 mm
Lightning protection zone LPZ 1→3
Maximum back-up fuse 125 A
Maximum continuous voltage (N-PE) 255 V
Maximum continuous voltage AC 280
Maximum discharge current (8/20 μs) 20 kA
Maximum discharge current (8/20 μs) [L-N] 20 kA
Maximum discharge current (8/20 μs) [N-PE] 50 kA
Network form Other
Nominal discharge current (8/20 µs) 10 kA
Nominal discharge current (8/20 µs) [L-N] 10 kA
Nominal discharge current (8/20 µs) [N-PE] 30 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 1+N/PE
Protection rating IP20
Remote signalling no
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 2+3
SPD to IEC 61643-1 Class II+III
Test class, type 2 yes
TN network form yes
TN-C-S network form yes
TN-S network form yes
TT network form yes

Connectivity options

Arrester surge current (8/20 µs) [total] 20 kA
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²
Max. mains-side overcurrent protection 125
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
V10-C 1+NPE-280 1+N/PE 280 IP20 5093418
1 piece
V10-C 3+NPE 3+N/PE 280 IP20 5094920
1 piece
