Hot-dip galvanised steel bend, with thread

Hot-dip galvanised steel bend, with thread

Type SBNM63 FT
|
Item no. 2046792
|
EAN 4012196387663
Show all variants
Item no. / Type
Thread

Smallest selling unit: 3 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

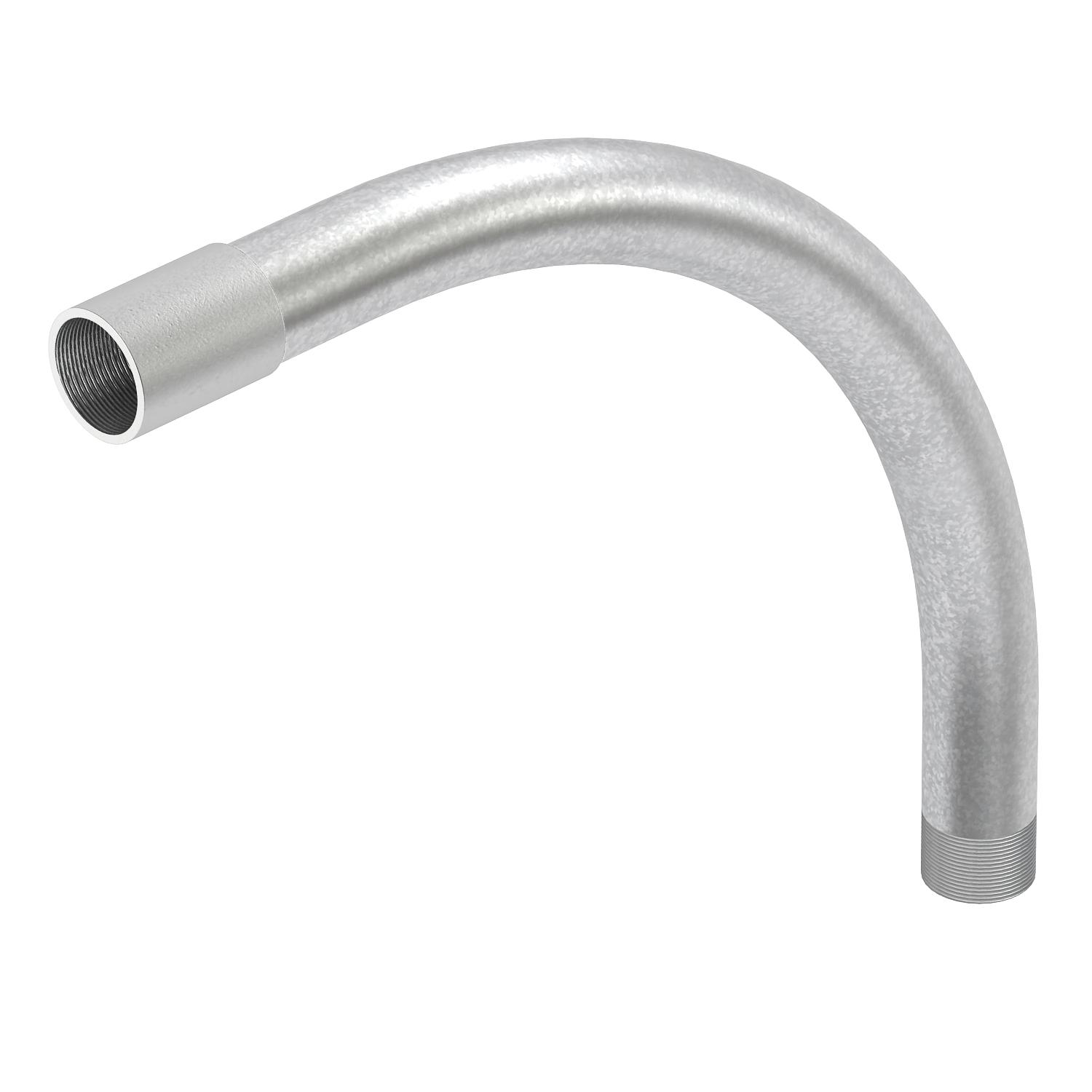

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

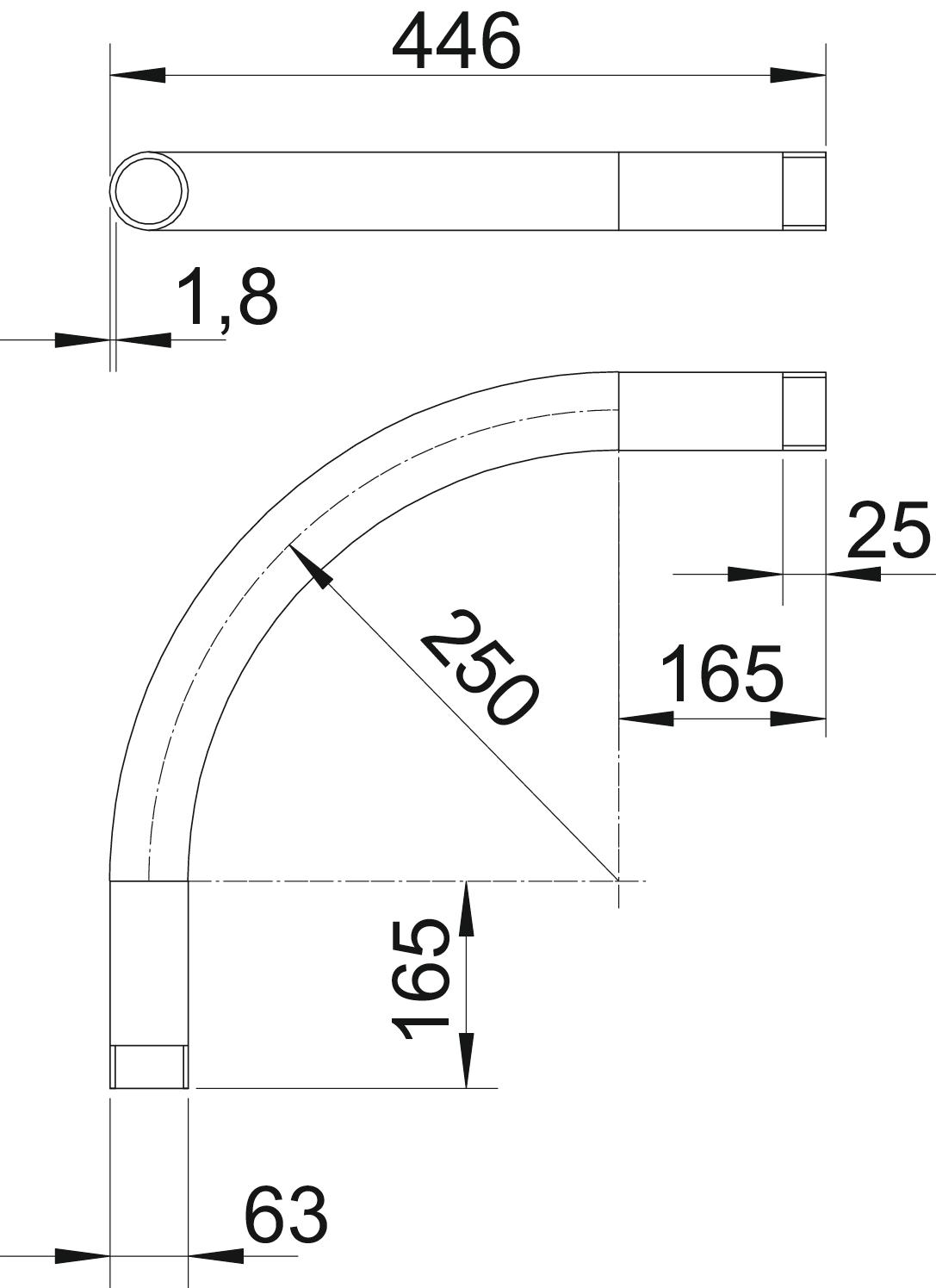

Dimensions

Dimension A165 mm
Dimension B446 mm
Dimension t1,8 mm
Dimension m (mm)M63
Dimension l25 mm
Dimension R250 mm
Dimension D63 mm

Technical data

Halogen-freeno
ThreadM63x1,5
Angle of the bend90 °
Polished surfaceno
With sleeveyes
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partno
For nominal pipe diameter63 mm
Version forThread
DimensionM63x1,5
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate5,9159 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Thread
SBNM16 FT
Item no.
2046786
Thread
M16x1,5
SBNM32 FT
Item no.
2046789
Thread
M32x1,5
SBNM40 FT
Item no.
2046790
Thread
M40x1,5
SBNM50 FT
Item no.
2046791
Thread
M50x1,5
SBNM63 FT
Item no.
2046792
Thread
M63x1,5
