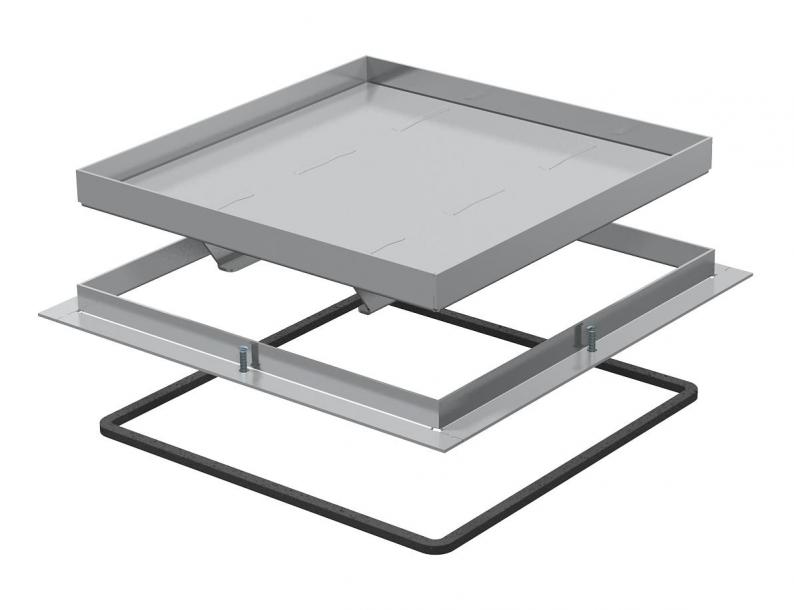

Heavy-duty frame cassette, blank, RKSL, nominal size 250-3
Type RK SL1 V2 30
|Item no. 7405900
|EAN 4012195105848
Item no. / Type
Floor height, min.
Floor covering thickness
Dimension h
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
"Blank" heavy-duty frame cassette for the creation of an inspection opening in the UZD250-3 in dry or wet-cleaned floors. Load class 1 to 10 kN. Only suitable for smooth floor coverings for indoor use.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Floor height, min. | 100 mm |
| Floor covering thickness | 28 mm |
| Length of installation dimensions | 290 mm |
| Wide installation dimensions | 290 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Heavy load class | 10 kN (OBO SL1) |
| Installation system type | GB2 |
| Heavy-duty version | yes |
| Dimension | 282x282x30 |
| Material | Stainless steel 1.4301 |

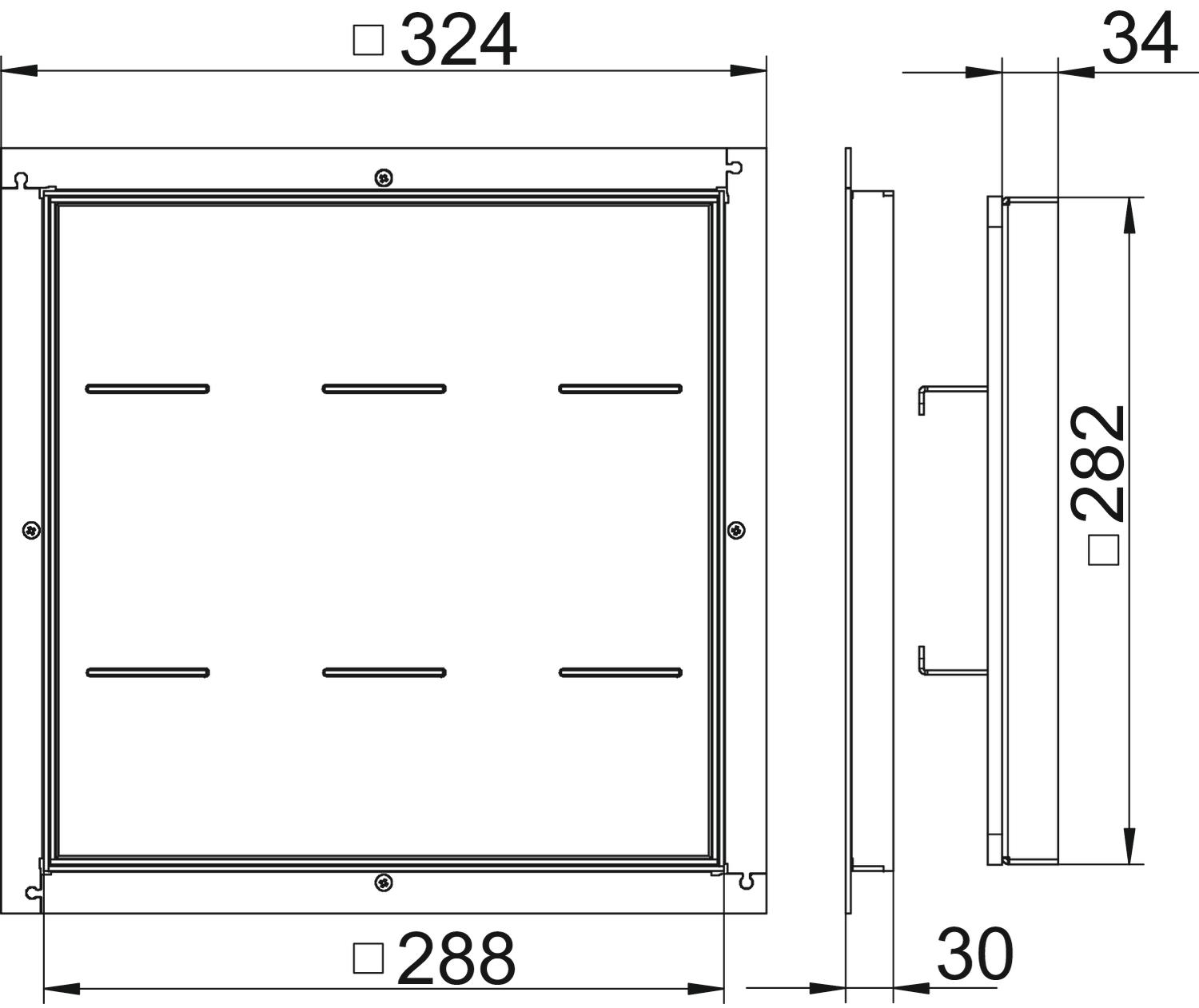

Dimensions
| Dimension A | 324 mm |
|---|---|
| Dimension B | 288 mm |
| Dimension C | 282 mm |
| Dimension h | 30 mm |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Floor height, min.
Floor covering thickness
Dimension h
Item no.
RK SL1 V2 20
90
18
20
7405892
RK SL1 V2 30
100
28
30
7405900
RK SL1 V2 40
110
38
40
7405908
Floor height, min.
Floor covering thickness
Dimension h
RK SL1 V2 20
Item no.
7405892
Floor height, min.
90
Floor covering thickness
18
Dimension h
20
RK SL1 V2 30
Item no.
7405900
Floor height, min.
100
Floor covering thickness
28
Dimension h
30
RK SL1 V2 40
Item no.
7405908
Floor height, min.
110
Floor covering thickness
38
Dimension h
40
