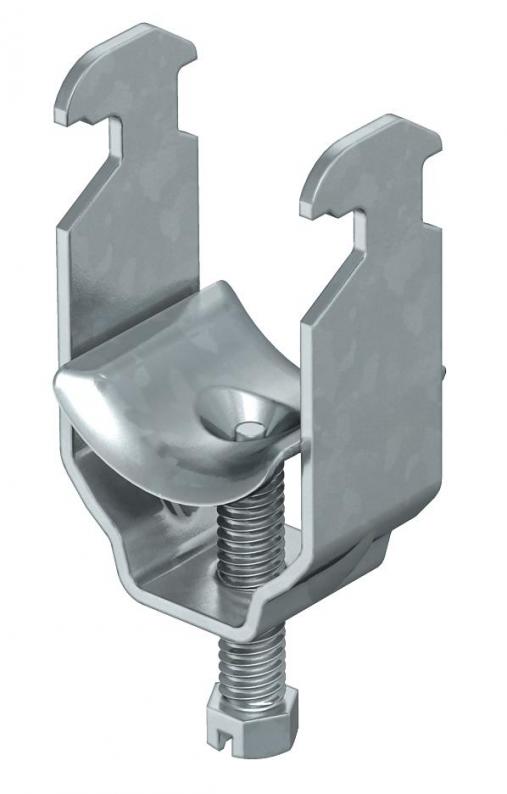

Clamp clip, single, FT metal pressure trough
Type 2056 M 52 FT
|Item no. 1156071
|EAN 4012195063131
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Clip, bolt and pressure trough made of hot-dip galvanised steel.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Clip, bolt and pressure trough made of hot-dip galvanised steel.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| For pipe diameter, min. | 50 mm |
|---|---|
| For pipe diameter, max. | 50 mm |
| for rail with slot width (with interval), min. | 16 mm |
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 86 mm |
| for 1 cable L | 44 |
| Clamping range D, min. | 46 mm |
| Clamping range D, max. | 52 mm |
| Dimension | 46-52mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2475 kg CO₂e / 1 Piece |
Dimensions
| Dimension L | 44 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 57 mm |
| Dimension H | 86 mm |
| Dimension t | 2 mm |
| Dimension C | 35 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M8 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 M 12 FT
3
8
12
1156004
2056 M 16 FT
3
12
16
1156012
2056 M 46 FT
5
40
46
1156063
2056 M 52 FT
5
46
52
1156071
2056 M 64 FT
5
58
64
1156101
2056 M 90 FT
5
82
90
1156152
