Clamp clip, single, FT metal pressure trough
Type 2056U M 34 FT
|Item no. 1158058
|EAN 4012195498490
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Technical data
Technical data
| For pipe diameter, min. | 32 mm |
|---|---|
| For pipe diameter, max. | 32 mm |
| for rail with slot width (with interval), min. | 18 mm |
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 28 mm |
| Clamping range D, max. | 34 mm |
| Dimension | 28-34mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1461 kg CO₂e / 1 Piece |

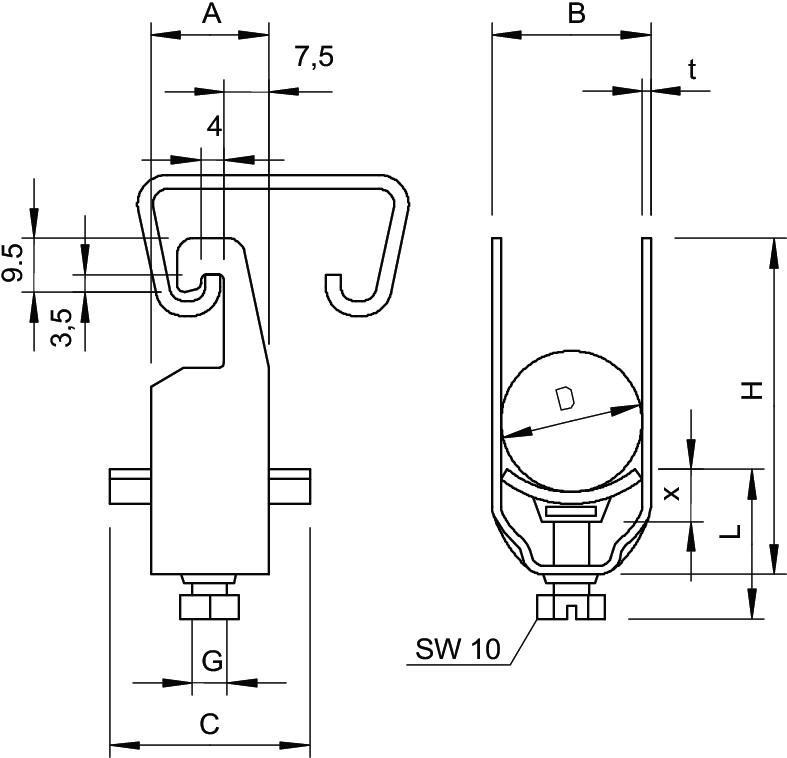

Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 39 mm |
| Dimension H | 67 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (6)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U M 12 FT
3
8
12
1158007
2056U M 16 FT
3
12
16
1158015
2056U M 34 FT
5
28
34
1158058
2056U M 40 FT
5
34
40
1158066
2056U M 46 FT
5
40
46
1158074
2056U M 58 FT
5
52
58
1158090
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056U M 12 FT
Item no.
1158007
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056U M 16 FT
Item no.
1158015
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056U M 34 FT
Item no.
1158058
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
2056U M 40 FT
Item no.
1158066
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056U M 46 FT
Item no.
1158074
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
2056U M 58 FT
Item no.
1158090
Max. Tightening torque
5
Clamping range D, min.
52
Clamping range D, max.
58
