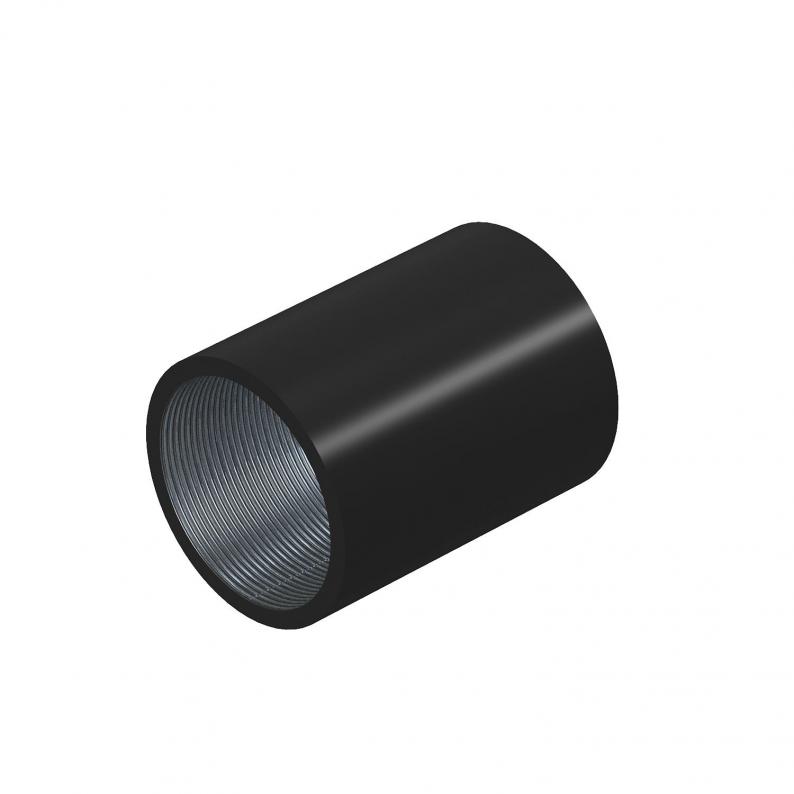

Black powder-coated steel sleeve, with thread
Type SVM63W SW
|Item no. 2046528
|EAN 4012195781387
Item no. / Type
Thread
for pipe diameter
Smallest selling unit: 5 piece
5piece
piece
Description
Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
Technical data

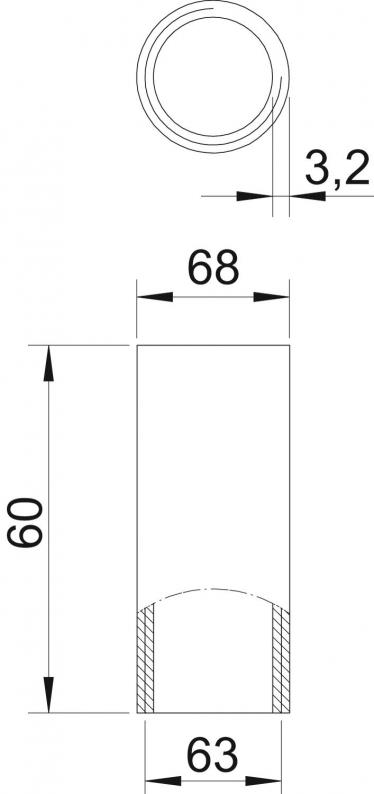

Dimensions
| Length | 60 mm |
|---|---|
| Dimension L | 60 mm |
| Dimension d | 63 mm |
| Dimension t | 3,2 mm |
| Dimension m (mm) | M63 |
| Dimension D | 68 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M63x1,5 |
| Size | 63 |
| Polished surface | no |
| Brushed surface | no |
| for pipe diameter | 63 mm |
| With inspection opening and lid | no |
| Two-part | no |
| Version for | Thread |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 250 °C |
| Dimension | M63x1,5 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8754 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Product images (3)
Tender specifications (2)
Variants
Type
Thread
for pipe diameter
Item no.
SVM16W SW
M16x1,5
16
2046522
SVM20W SW
M20x1,5
20
2046523
SVM25W SW
M25x1,5
25
2046524
SVM32W SW
M32x1,5
32
2046525
SVM40W SW
M40x1,5
40
2046526
SVM50W SW
M50x1,5
50
2046527
SVM63W SW
M63x1,5
63
2046528
