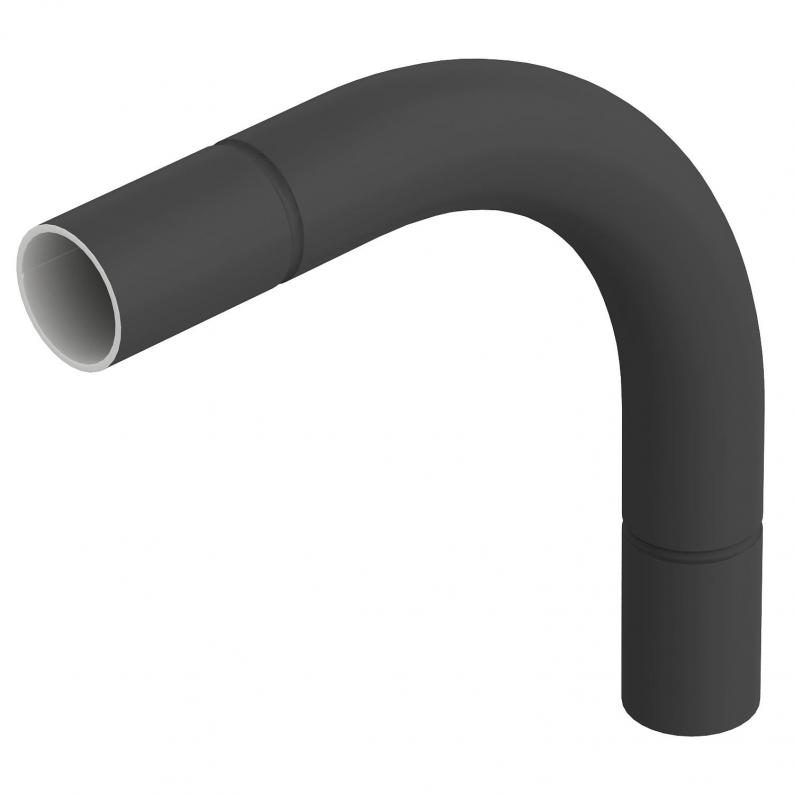

Black powder-coated steel bend, without thread

Black powder-coated steel bend, without thread

Type SBN20 SW
|
Item no. 2046825
|
EAN 4012196388073
Show all variants
Item no. / Type
For nominal pipe diameter

Smallest selling unit: 25 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension A53,7 mm
Dimension d20,6 mm
Dimension B155 mm
Dimension t1 mm
Dimension m (mm)M20
Dimension l30 mm
Dimension R90 mm
Dimension D22,6 mm

Technical data

Halogen-freeno
Angle of the bend90 °
Polished surfaceno
With sleeveyes
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partno
For nominal pipe diameter20 mm
Version forConnector
DimensionØ20mm
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005
CO2 Footprint (GWP) Cradle-to-Gate0,4103 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

For nominal pipe diameter
SBN16 SW
Item no.
2046824
For nominal pipe diameter
16
SBN20 SW
Item no.
2046825
For nominal pipe diameter
20
SBN25 SW
Item no.
2046826
For nominal pipe diameter
25
SBN32 SW
Item no.
2046827
For nominal pipe diameter
32
SBN40 SW
Item no.
2046828
For nominal pipe diameter
40
SBN50 SW
Item no.
2046829
For nominal pipe diameter
50
SBN63 SW
Item no.
2046830
For nominal pipe diameter
63
