Zinc-nickel coated steel sleeve, with thread
Type SVM32W DN
|Item no. 2046557
|EAN 4012195781974
Item no. / Type
Thread
for pipe diameter
Smallest selling unit: 50 piece
50piece
piece
Description
Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
Technical data

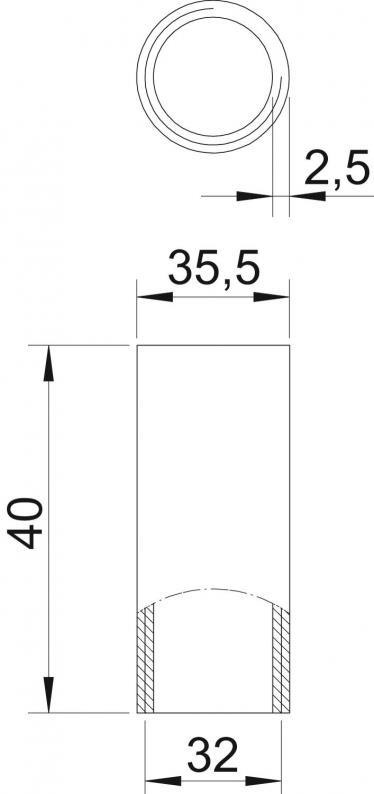

Dimensions
| Length | 40 mm |
|---|---|
| Dimension L | 40 mm |
| Dimension d | 32 mm |
| Dimension t | 2,5 mm |
| Dimension m (mm) | M32 |
| Dimension D | 35,5 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M32x1,5 |
| Size | 32 |
| Polished surface | no |
| Brushed surface | no |
| for pipe diameter | 32 mm |
| With inspection opening and lid | no |
| Two-part | no |
| Version for | Thread |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 400 °C |
| Dimension | M32x1,5 |
| Surface | Zinc / nickel coated |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2198 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Thread
for pipe diameter
Item no.
SVM32W DN
M32x1,5
32
2046557
SVM50W DN
M50x1,5
50
2046559
Thread
for pipe diameter
SVM32W DN
Item no.
2046557
Thread
M32x1,5
for pipe diameter
32
SVM50W DN
Item no.
2046559
Thread
M50x1,5
for pipe diameter
50
