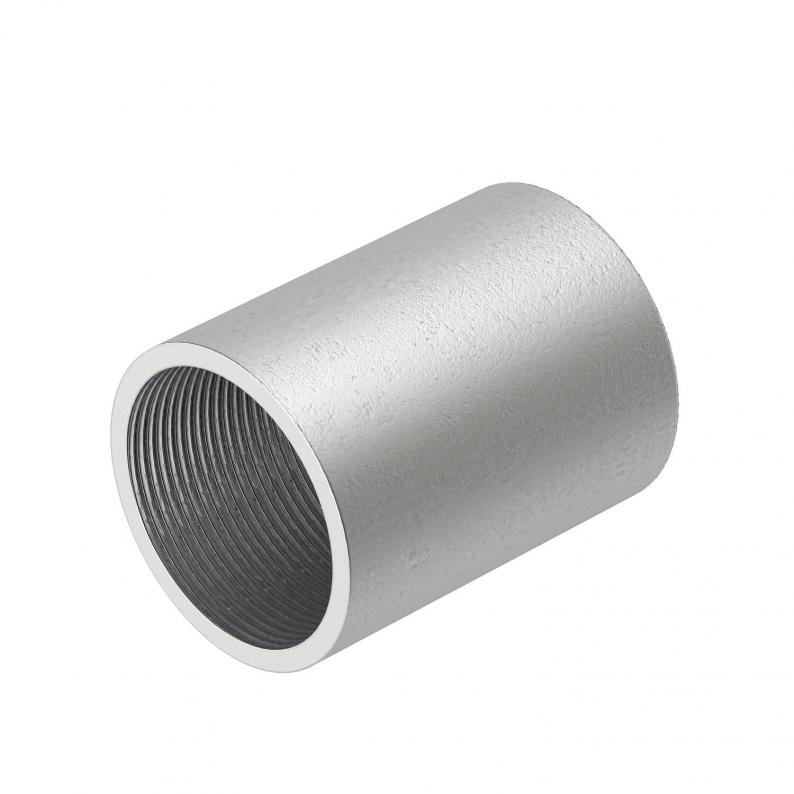

Zinc-nickel coated steel sleeve, with thread
Type SVM16W DN | Item no. 2046553 | EAN 4012195781912
Item no. / Type
Thread
for pipe diameter
Smallest selling unit: 25 piece
25piece
Description
Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
Technical data

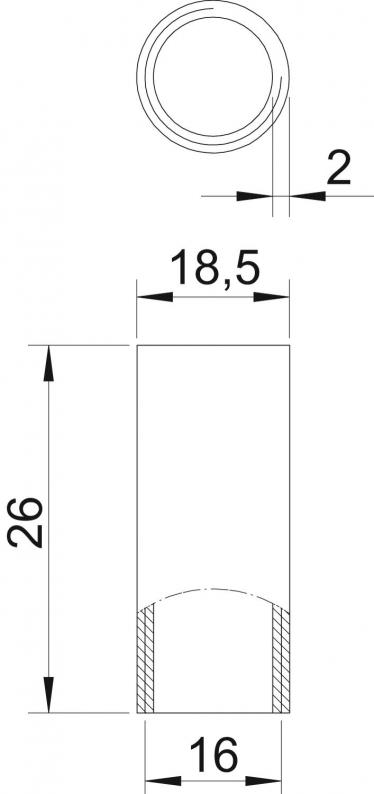

Dimensions
| Length | 26 mm |
|---|---|
| Dimension L | 26 mm |
| Dimension d | 16 mm |
| Dimension t | 2 mm |
| Dimension m (mm) | M16 |
| Dimension D | 18,5 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M16x1,5 |
| Size | 16 |
| Polished surface | no |
| Brushed surface | no |
| for pipe diameter | 16 mm |
| With inspection opening and lid | no |
| Two-part | no |
| Version for | Thread |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Dimension | M16x1,5 |
| Surface | Zinc / nickel coated |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1493 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Product images (3)
Tender specifications (2)
Variants
Type
Thread
for pipe diameter
Item no.
SVM16W DN
M16x1,5
16
2046553
SVM32W DN
M32x1,5
32
2046557
SVM40W DN
M40x1,5
40
2046558
SVM50W DN
M50x1,5
50
2046559
SVM63W DN
M63x1,5
63
2046560
Thread
for pipe diameter
SVM16W DN
Item no.
2046553
Thread
M16x1,5
for pipe diameter
16
SVM32W DN
Item no.
2046557
Thread
M32x1,5
for pipe diameter
32
SVM40W DN
Item no.
2046558
Thread
M40x1,5
for pipe diameter
40
SVM50W DN
Item no.
2046559
Thread
M50x1,5
for pipe diameter
50
SVM63W DN
Item no.
2046560
Thread
M63x1,5
for pipe diameter
63
