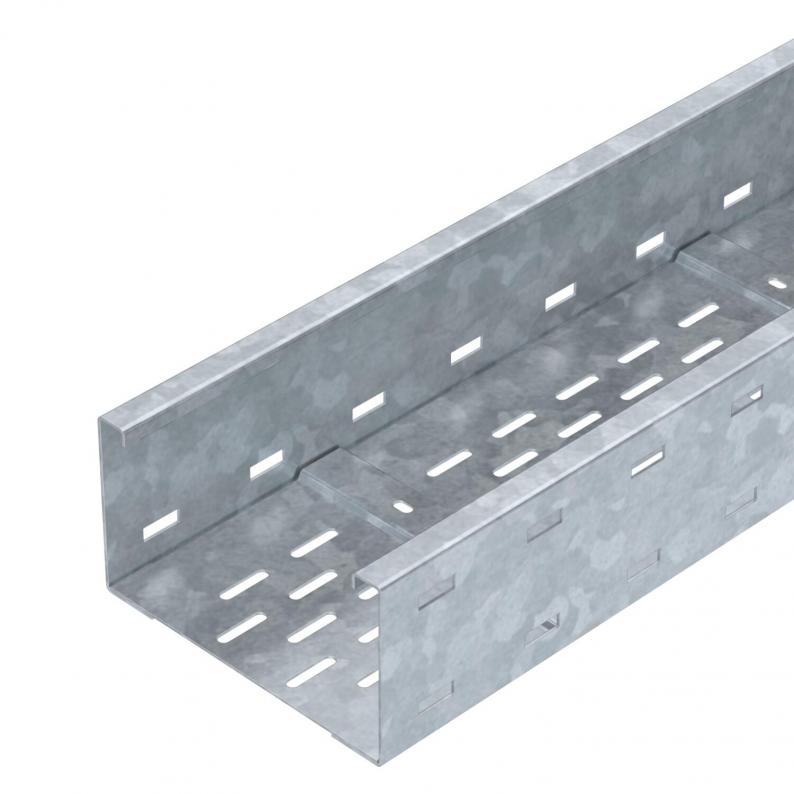

Wide span cable tray WKSG 110 FT

Wide span cable tray WKSG 110 FT

Type WKSG 120 FT
|
Item no. 6098141
|
EAN 4012196351732
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no

Smallest selling unit: 6 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width200 mm
Height110 mm
Dimension L6000 mm
Dimension B200 mm

EPD (Environmental Product Declaration)

EPD-verifiedyes
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionyes
Usable cross-section202 cm²
Rustproof steel, pickledno
Plate thickness2 mm
Mounting perforation in baseyes
Usable cross-section20200 mm²
Dimension110 x 200
Dimension110x200x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Usable length6000 mm
Type of connector, cable support systemScrewed

Loads

Support spacing 3.0 m2,5 kN/m
Support spacing 3.5 m2,01 kN/m
Support spacing 4.0 m1,6 kN/m
Support spacing 4.5 m1,32 kN/m
Support spacing 5.0 m1,1 kN/m
Support spacing 6.0 m0,75 kN/m
Support spacing 7.0 m0,45 kN/m
Support spacing 8.0 m0,2 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate15,9014 kg CO2e / 1 Meter
Load diagram, wide span cable tray, type WKSG 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)
