Wide span angle connector, 110 FS
Type WRWVV 110 FS | Item no. 6091379 | EAN 4012195437918
Item no. / Type
6091379 / WRWVV 110 FS
Smallest selling unit: 2 piece
2piece
Description

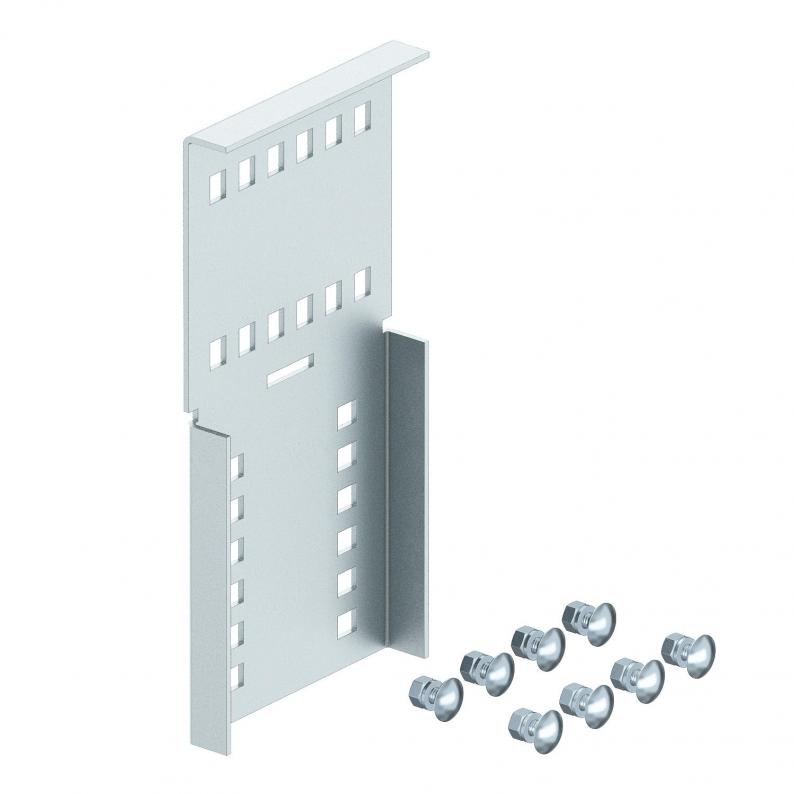

Angle connection to connect wide span cable trays and ladders running vertically and horizontally of side height 110 mm. Including fastening material.
Technical data

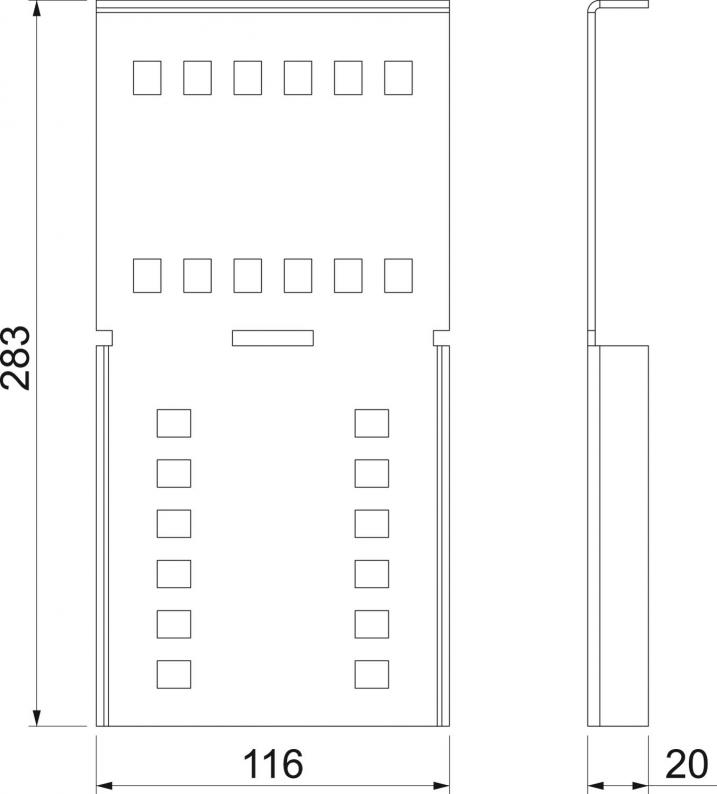

Dimensions
| Length | 283 mm |
|---|---|
| Width | 20 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 110 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 110x250 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3809 kg CO2e / 1 Piece |
