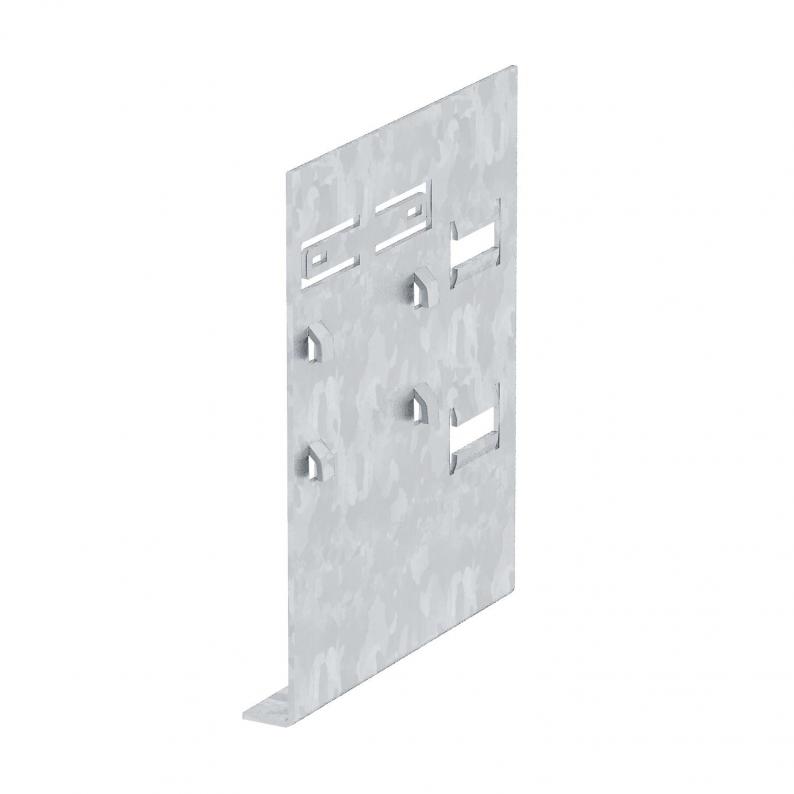

Wall panel adapter KS70170 for GK plastic, trunking width 170 mm

Wall panel adapter KS70170 for GK plastic, trunking width 170 mm

Type KS70170 | Item no. 6279806 | EAN 4012195680734

Show all variants
Item no. / Type
6279806 / KS70170

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Wall panel adapter for mounting the GK70170 device installation trunking on fastening panels.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

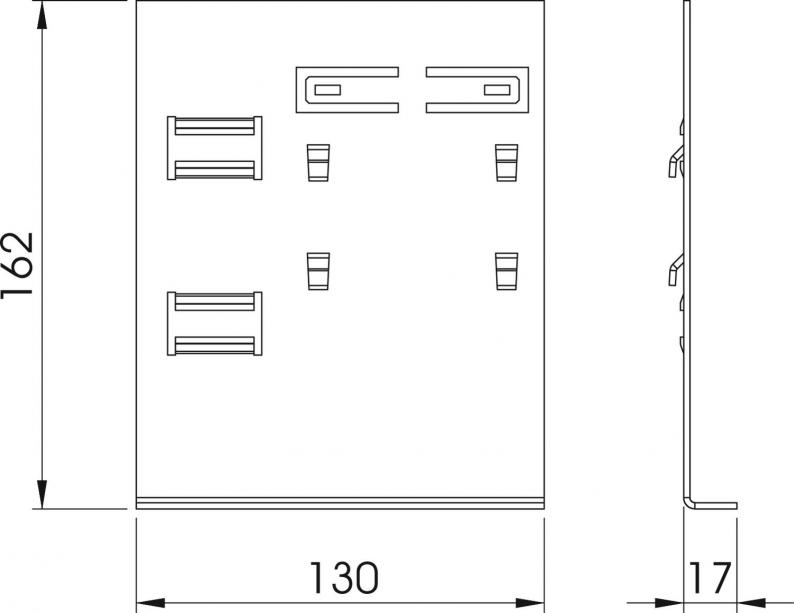

Dimensions

Length130 mm
Width162 mm
Height17 mm

Technical data

for duct dimension70x170 mm
Protection ratingIP30
Protection rating IK codeIK08
Fastening typeLockable
Version forWall mounting
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
Dimension128x162x27mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate1,0468 kg CO2e / 1 Piece
