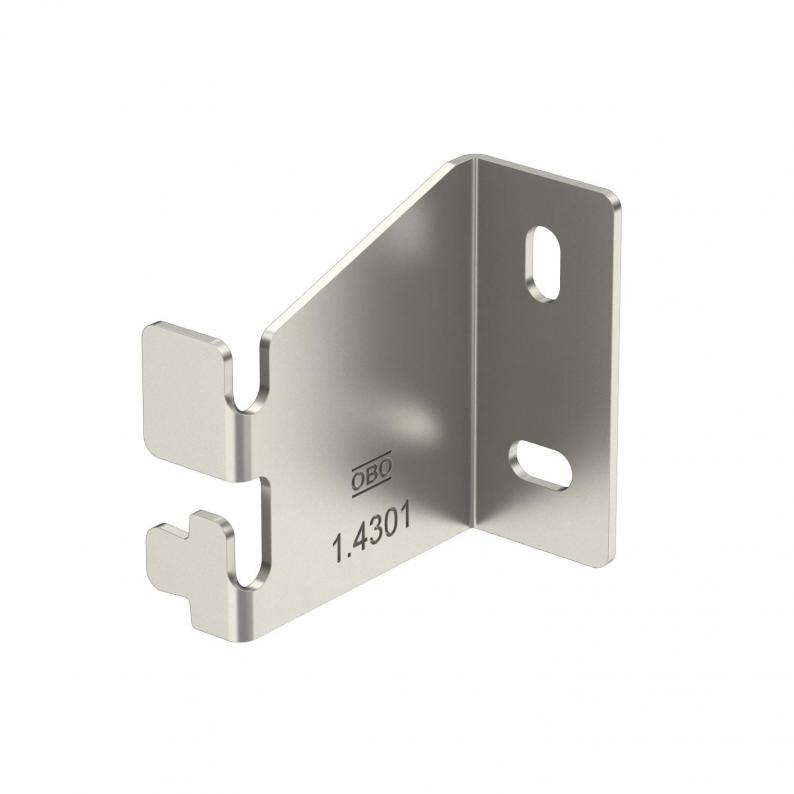

Wall holder, horizontal
Type WBH CGR50 A2
|Item no. 6016411
|EAN 4012195890690
Item no. / Type
6016411 / WBH CGR50 A2
Smallest selling unit: 25 piece
25piece
piece
Description
Wall holder for horizontal wall fastening of the C mesh cable tray. Screwless mesh cable tray fastening on the wall holder.
Technical data

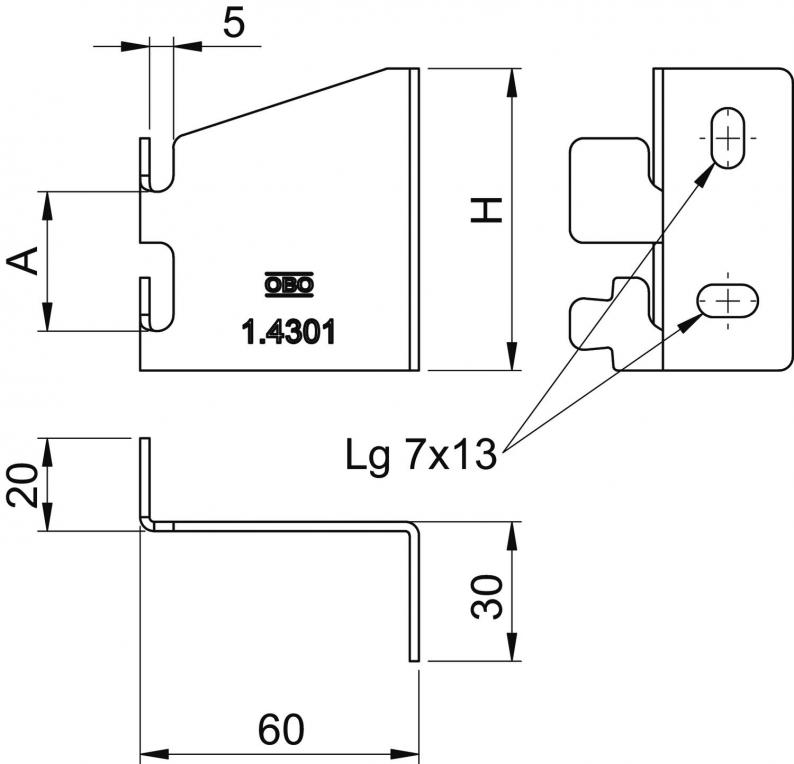

Dimensions
| Length | 48 mm |
|---|---|
| Width | 65 mm |
| Height | 60 mm |
| Dimension A | 30 mm |
| Dimension H | 65 mm |
Technical data
| Material thickness | 2 mm |
|---|---|
| Dimension | 48x65x60 |
| Dimension | H65mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
0,6536 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6536 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,6536 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
