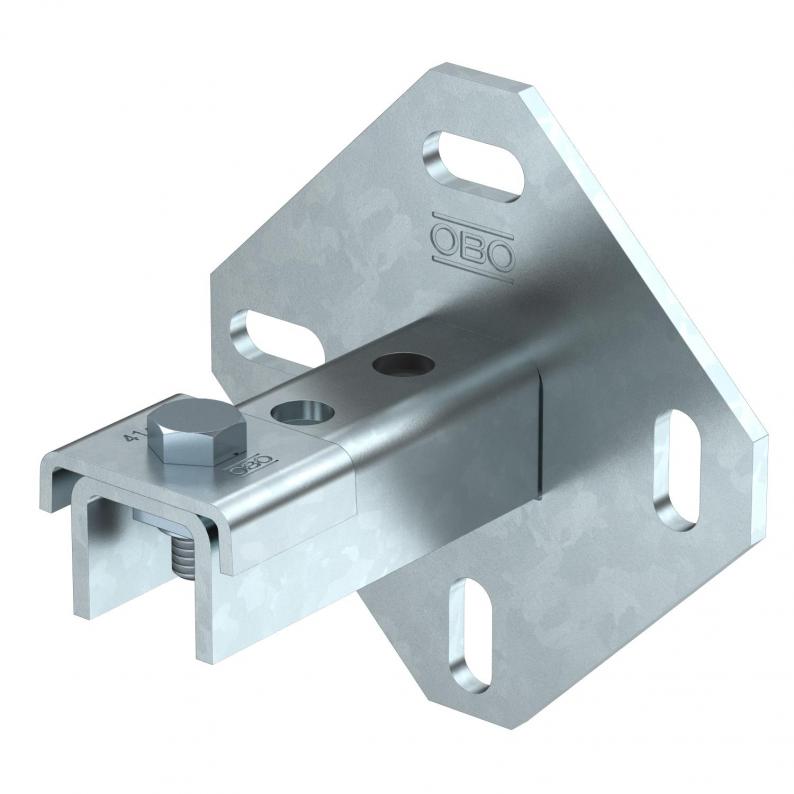

Wall, floor and ceiling bracket with 3 holes FT
Type WBDHE 41 FT
|Item no. 1123191
|EAN 4012195939276
Item no. / Type
1123191 / WBDHE 41 FT
Version for
Perforated
Smallest selling unit: 10 piece
10piece
piece
Description
The wall, floor and ceiling bracket can ideally be used as a panel for wall, floor and ceiling mounting.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Technical data

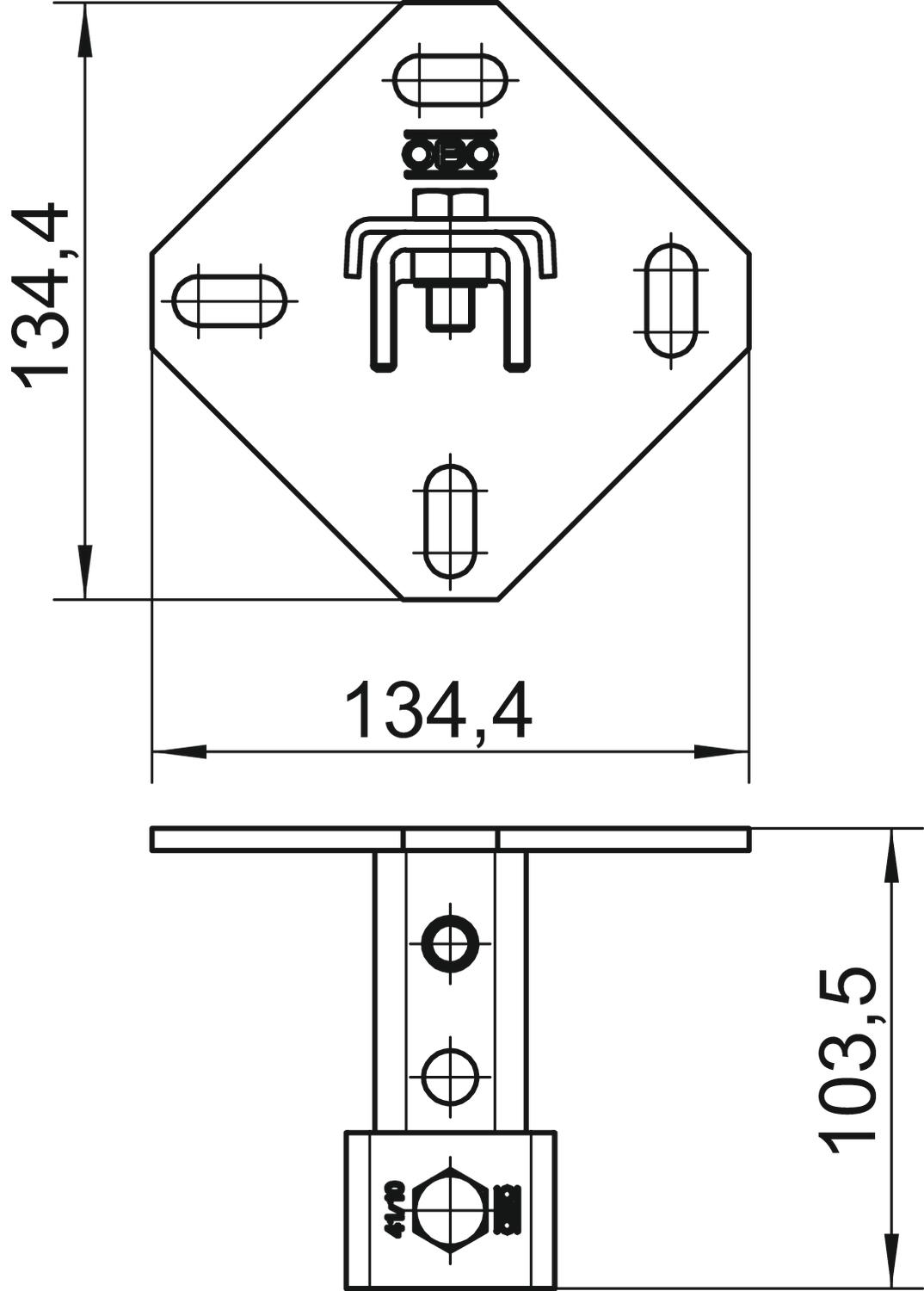

Dimensions
| Length | 102 mm |
|---|---|
| Width | 134 mm |
| Height | 110 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Slot width | 22 mm |
|---|---|
| Material thickness | 5 mm |
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Hole size | 25 x 11 |
| Profile shape | C profile |
| Version for | Perforated |
| Dimension | 134x110x102 |
| Surface | Hot-dip galvanised |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0185 kg CO2e / 1 Piece |
|---|
