Wall clamp/central hanger FS
Type K 12 1818 FS | Item no. 6437109 | EAN 4012196208876
Item no. / Type
6437109 / K 12 1818 FS
Smallest selling unit: 25 piece
25piece
Description
Wall fixing for direct fixing of mesh cable trays of side height 55 mm on the wall.
As wall fastening up to max. mesh cable tray width 200 mm.
As centre suspension up to max. mesh cable tray width 200 mm.
As a pendulum suspension from a width of 300 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|

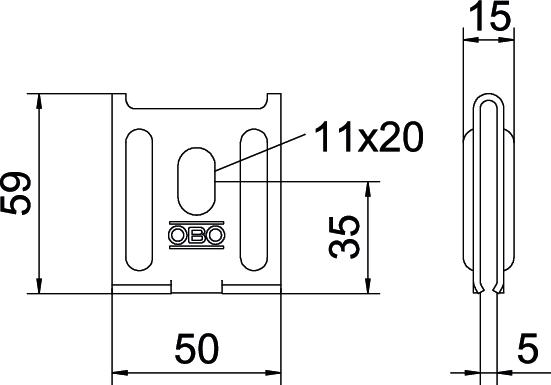

| Dimension | 50x59 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,283 kg CO2e / 1 Piece |
