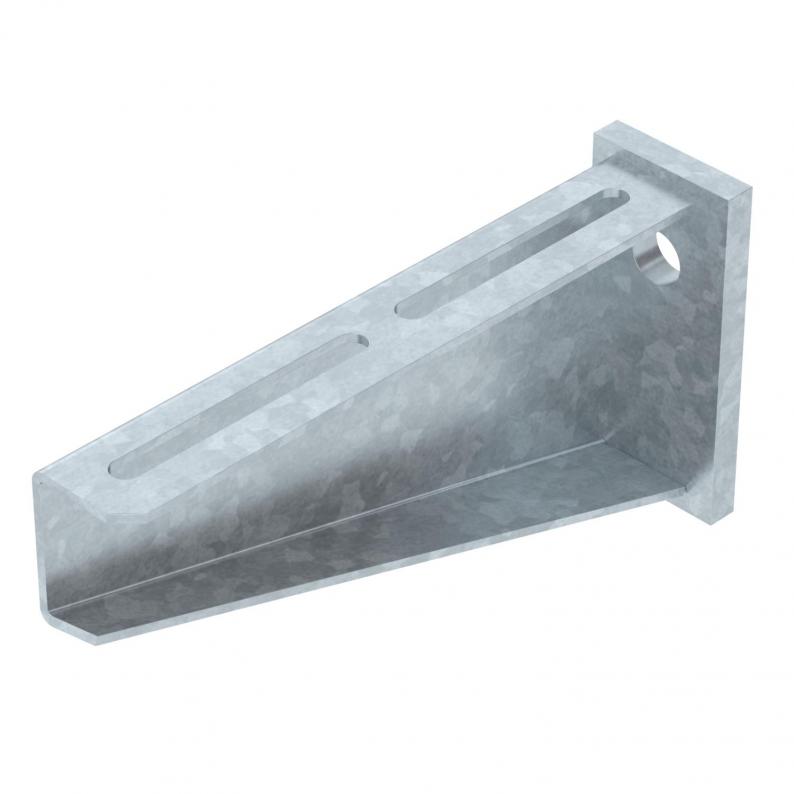

Wall bracket AW 80
Type AW 80 21 FT
|Item no. 6417752
|EAN 4012196203475
Item no. / Type
Width
F in kN
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy-duty wall bracket with welded head plate.
When fastening cable trays and ladders with truss-head bolts of size M6, please order large washers separately (perforation in bracket 9 x ...).
Technical data

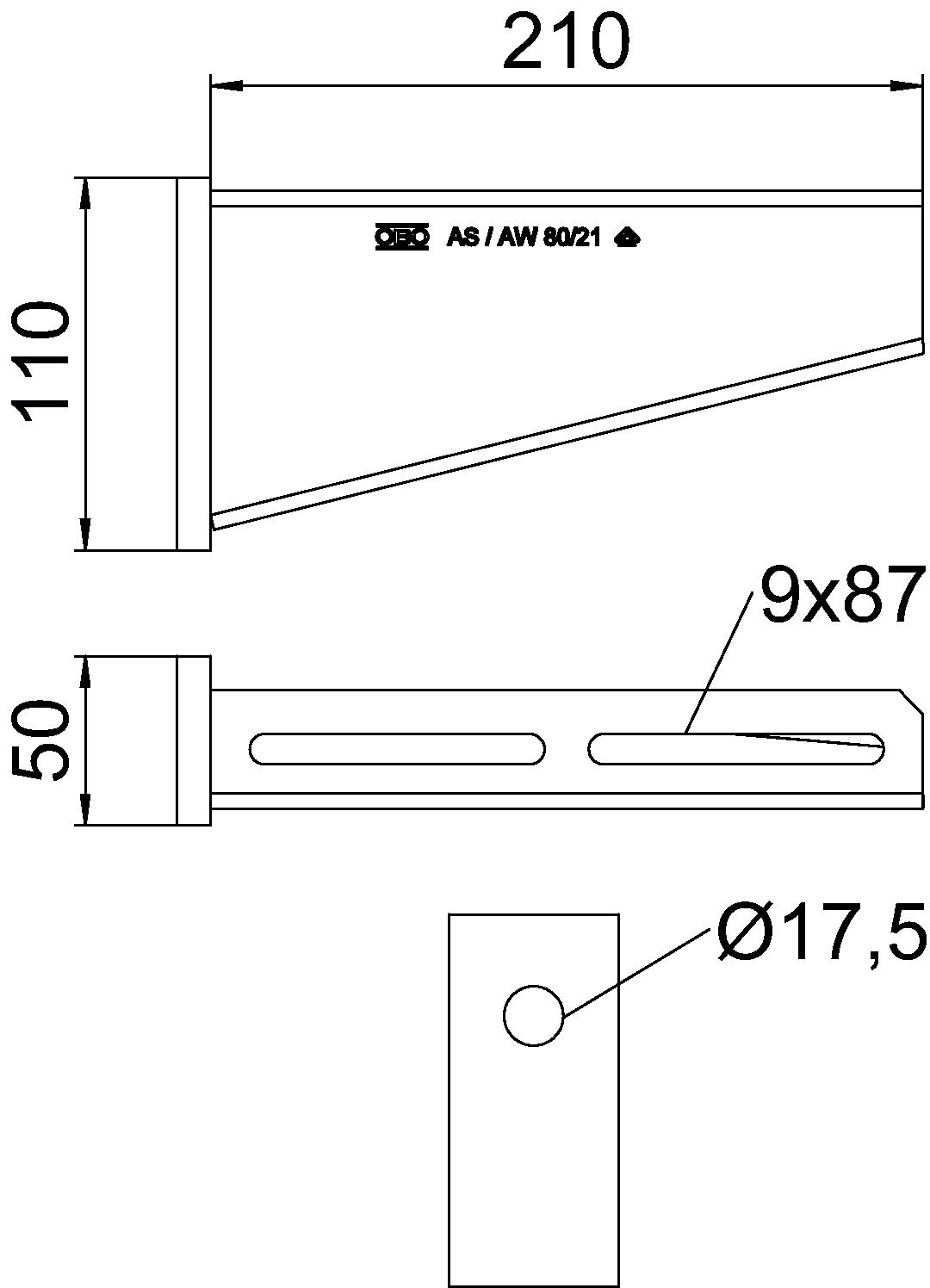

Dimensions
| Length | 50 mm |
|---|---|
| Width | 210 mm |
| Height | 110 mm |
| Dimension A | 50 mm |
| Dimension B | 210 mm |
| Dimension H | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Hole diameter | 17,5 mm |
| Version for | Wall and support bracket |
| F in kN | 8 kN |
| Dimension | B210mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6672 kg CO2e / 1 Piece |
