VHF cover plate, for 2x surface-mounted socket, type ASD

VHF cover plate, for 2x surface-mounted socket, type ASD

Type VHF-P8
|
Item no. 6109879
|
EAN 4012195477457
Show all variants
Item no. / Type
6109879 / VHF-P8

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

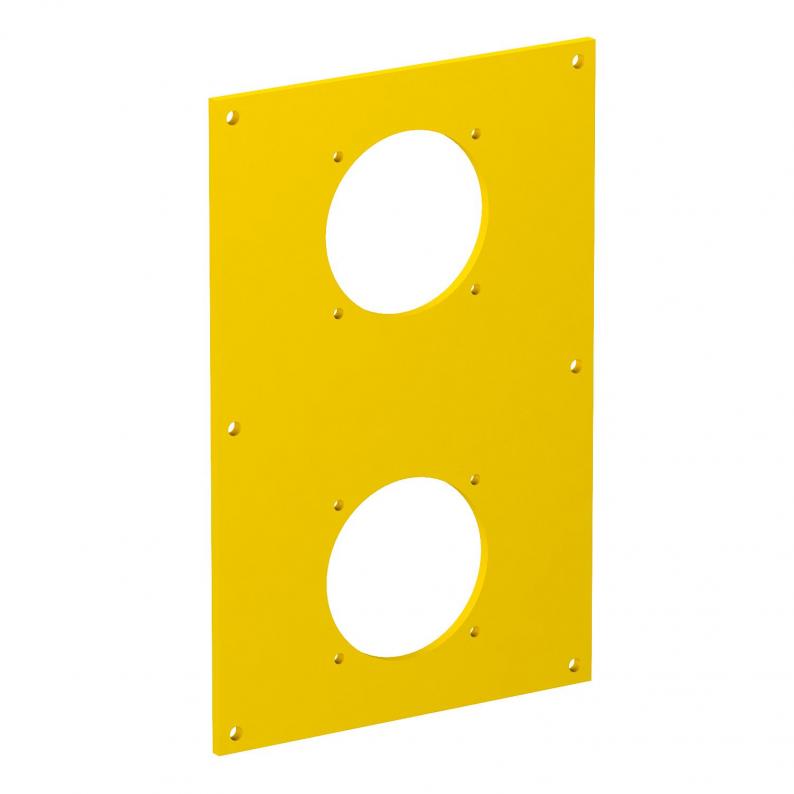

Cover plate with two Ø 45 mm openings for the installation of two extension sockets (type ASD-...) with 38 mm fastening track, including 8 screws for fastening the device.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

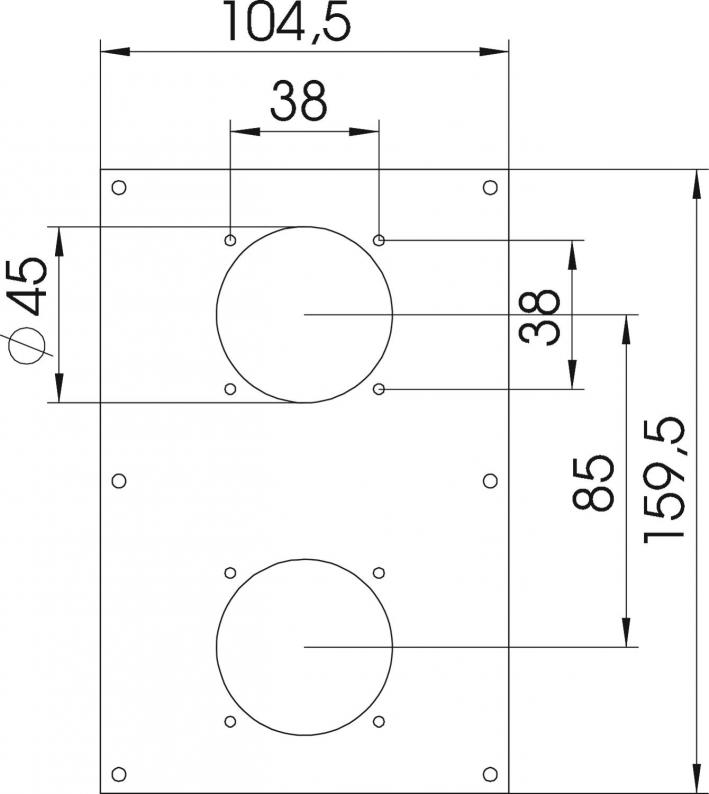

Dimensions

Width104,5 mm
Height159,5 mm

Technical data

Halogen-freeno
Number of units2
Protection ratingIP44
Blanking lidno
Installation technologyMiscellaneous
Fastening typeScrew-on
Opening shapeRound
Dimension160x105x3mm
MaterialPolyvinylchloride
ColourRape yellow; RAL 1021
CO2 Footprint (GWP) Cradle-to-Gate0,2315 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

VHF-P8
Item no.
6109879
