VHF cover plate, for 1x surface-mounted socket, type ASD
Type VHF-P12
|Item no. 6109856
|EAN 4012196169368
Item no. / Type
6109856 / VHF-P12
Smallest selling unit: 1 piece
1piece
piece
Description

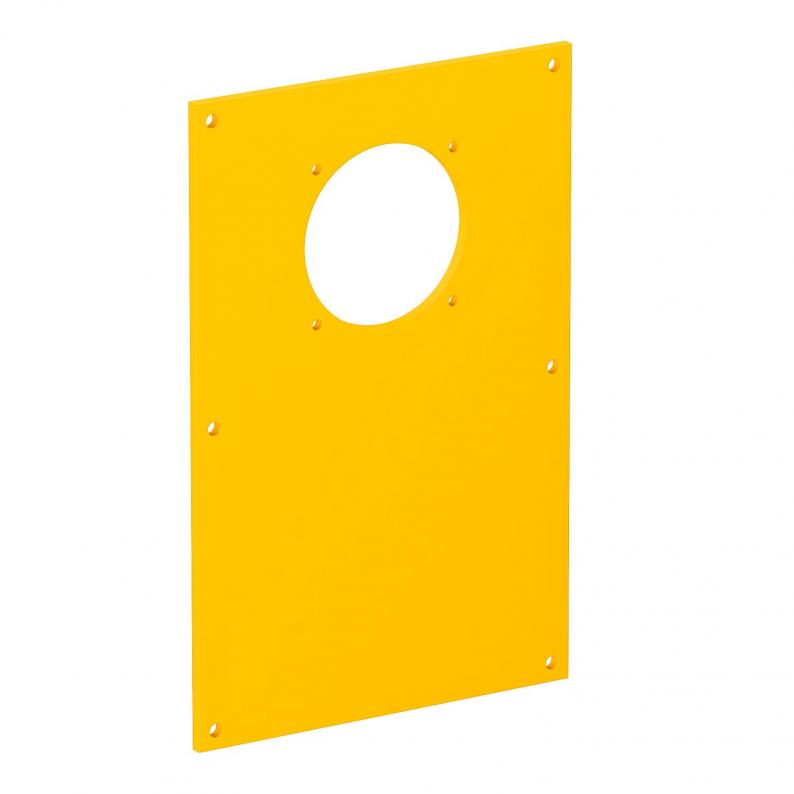

Cover plate with a Ø 45 mm opening for the installation of an extension socket (type ASD-...) with 38 mm fastening track, including 4 screws for fastening the device.
Technical data

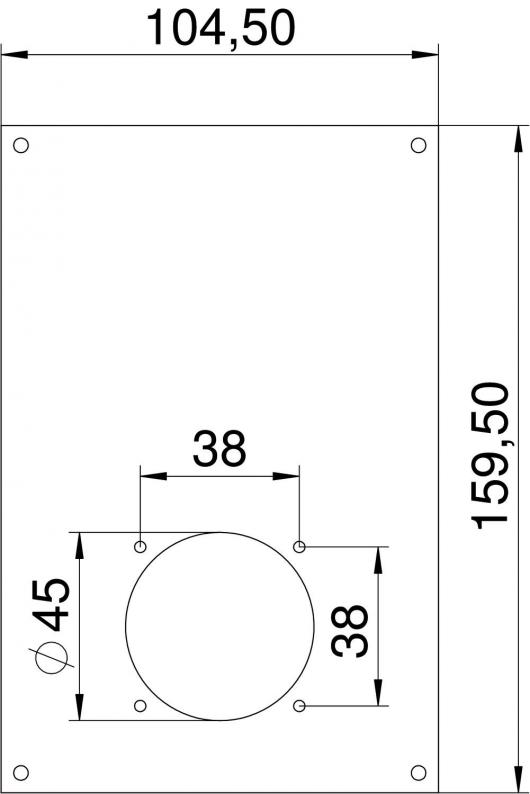

Dimensions
| Width | 104,5 mm |
|---|---|
| Height | 159,5 mm |
Technical data
| Halogen-free | no |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Blanking lid | no |
| Installation technology | Miscellaneous |
| Fastening type | Screw-on |
| Opening shape | Round |
| Dimension | 166x105mm |
| Material | Polyvinylchloride |
| Colour | Rape yellow; RAL 1021 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2266 kg CO2e / 1 Piece |
