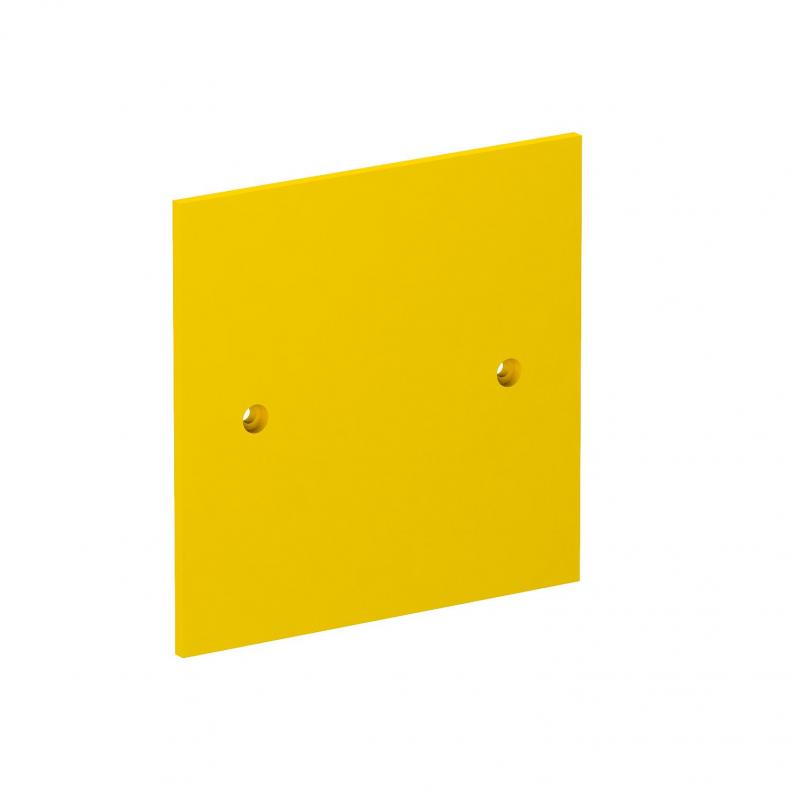

VH cover plate as blanking cover
Type VH-P1
|Item no. 6109842
|EAN 4012195125334
Item no. / Type
6109842 / VH-P1
Smallest selling unit: 1 piece
1piece
piece
Description
Cover plate as blanking cover.
Technical data

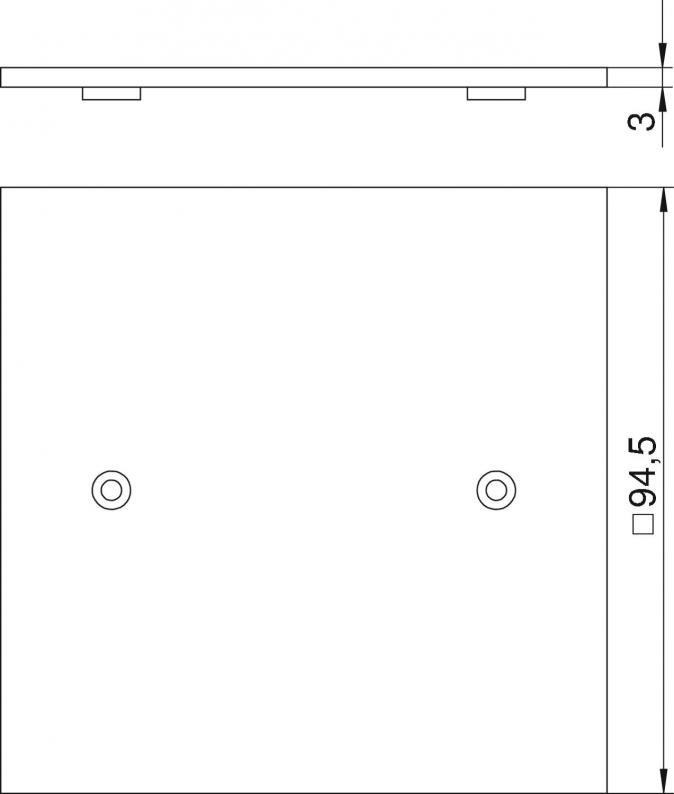

Dimensions
| Width | 94,5 mm |
|---|---|
| Height | 94,5 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 0 |
| Protection rating | IP20 |
| Blanking lid | yes |
| Installation technology | Miscellaneous |
| Fastening type | Screw-on |
| Dimension | 95x95mm |
| Material | Polyamide |
| Colour | Rape yellow; RAL 1021 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1225 kg CO2e / 1 Piece |
