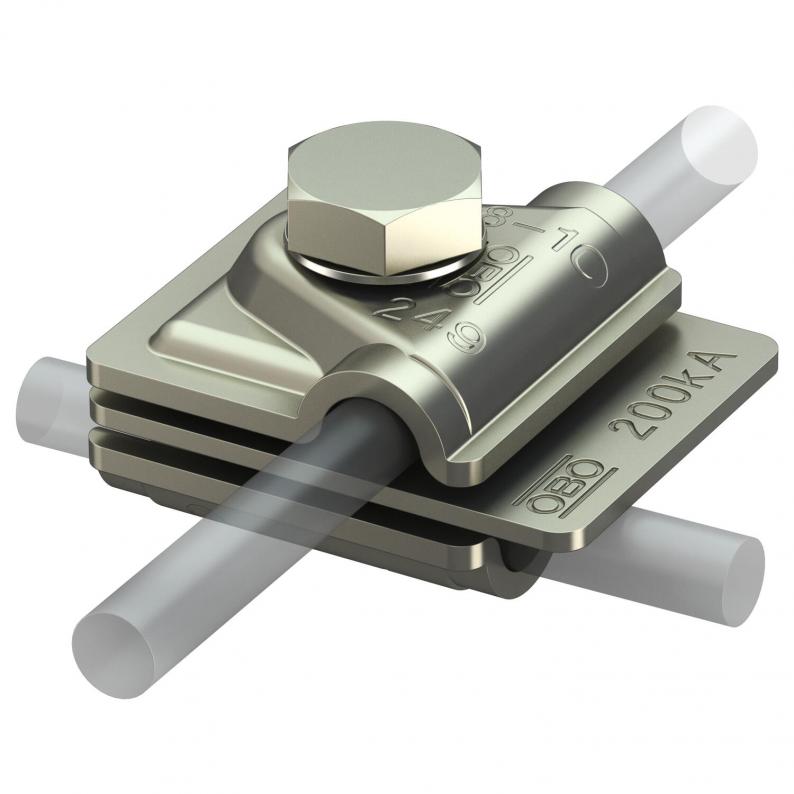

Vario quick connector 200 kA
Type 249 8-10 V2A 200
|Item no. 5311595
|EAN 4012196656141
Item no. / Type
5311595 / 249 8-10 V2A 200
Smallest selling unit: 10 piece
10piece
piece
Description
• For T, intersection and parallel connections
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1) with 200 kA
• For use in lightning protection class I with the isCon® Premium conductor
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1) with 200 kA
• For use in lightning protection class I with the isCon® Premium conductor
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Multipurpose connection clamp |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H2/200 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Fit | Rd 8-10 mm |

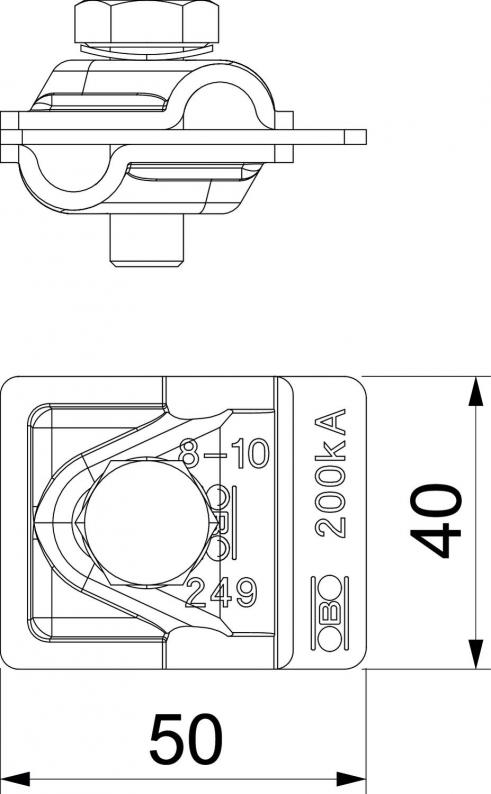

| Dimension | 50x40mm |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,891 kg CO2e / 1 Piece |
