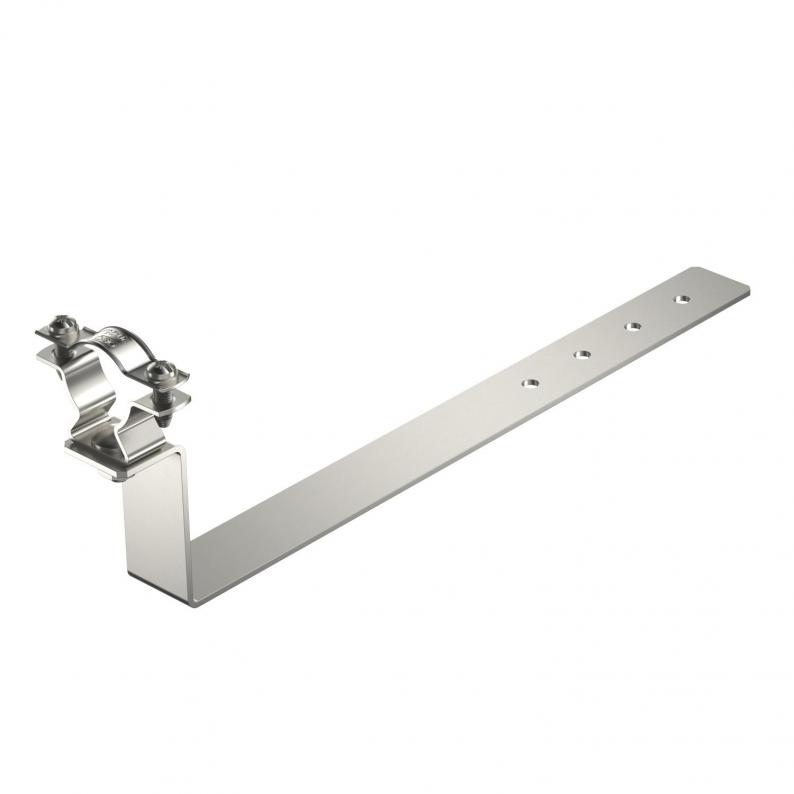

VA roof conductor holder, pitched roofs
Type isCon H280 VA
|Item no. 5408047
|EAN 4012195674870
Item no. / Type
5408047 / isCon H280 VA
Conductor diameter, min.
23
Smallest selling unit: 25 piece
25piece
piece
Description
• For routing of the isCon® conductor on pitched roofs
• Cable bracket with sprung discs to protect the screws against loosening
• Cable bracket with sprung discs to protect the screws against loosening
Technical data

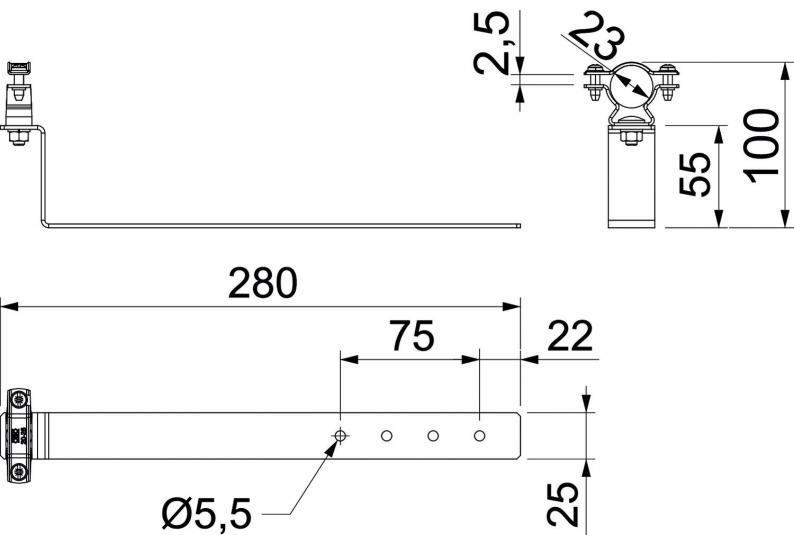

Dimensions
| Length | 280 mm |
|---|---|
| Dimension L | 2,5 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Mounting height | 55 mm |
|---|---|
| Conductor diameter, min. | 23 |
| Connection | Round conductor |
| Conductor fastening type | With clamp clip |
| Application | Pitched roof |
| Mounting type | Screw-on |
| Dimension | 280mm |
| Material | Stainless steel 1.4301 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 1,171 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Mounting height
Conductor diameter, min.
Item no.
isCon H280 VA
280
55
23
5408047
isCon H280 VA
Item no.
5408047
Length
280
Mounting height
55
Conductor diameter, min.
23
