VA cable bracket for isCon® conductor for mounting on roof/wall structures
Type isCon H VA
|Item no. 5408056
|EAN 4012195699668
Item no. / Type
Dimension d min.
Smallest selling unit: 50 piece
50piece
piece
Description
• For isCon® conductor for mounting on roof/wall structures
• With sprung discs to protect the screws against loosening
• With sprung discs to protect the screws against loosening
Technical data

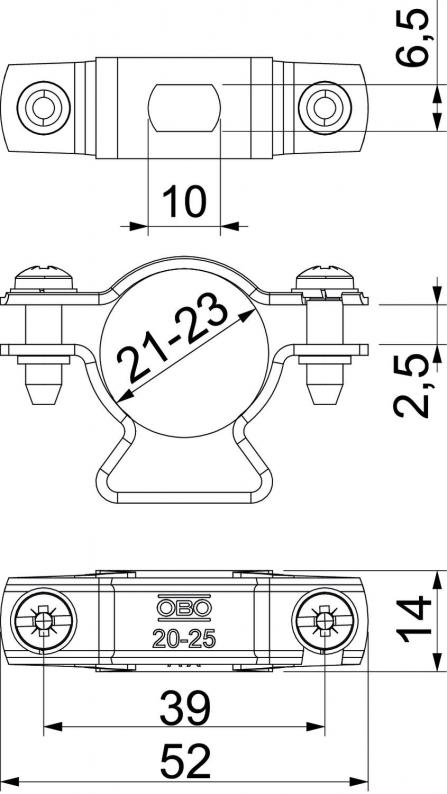

Dimensions
| Length | 51 mm |
|---|---|
| Dimension L | 2,5 mm |
| Dimension A | 51 mm |
| Dimension B | 39 mm |
| Dimension H | 34 mm |
| Dimension d min. | 23 mm |
| Dimension t | 14 mm |
Technical data
| Dimension | Ø23mm |
|---|---|
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1889 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Dimension d min.
Item no.
isCon H VA
23
5408056
isCon H 26 VA
26
5408064
Dimension d min.
isCon H VA
Item no.
5408056
Dimension d min.
23
isCon H 26 VA
Item no.
5408064
Dimension d min.
26
