UZD250-3 for screed height 70−125 mm
Type UZD 250-3
|Item no. 7410030
|EAN 4012195430964
Item no. / Type
7410030 / UZD 250-3
Cover version
Universal
Smallest selling unit: 1 piece
1piece
piece
Description

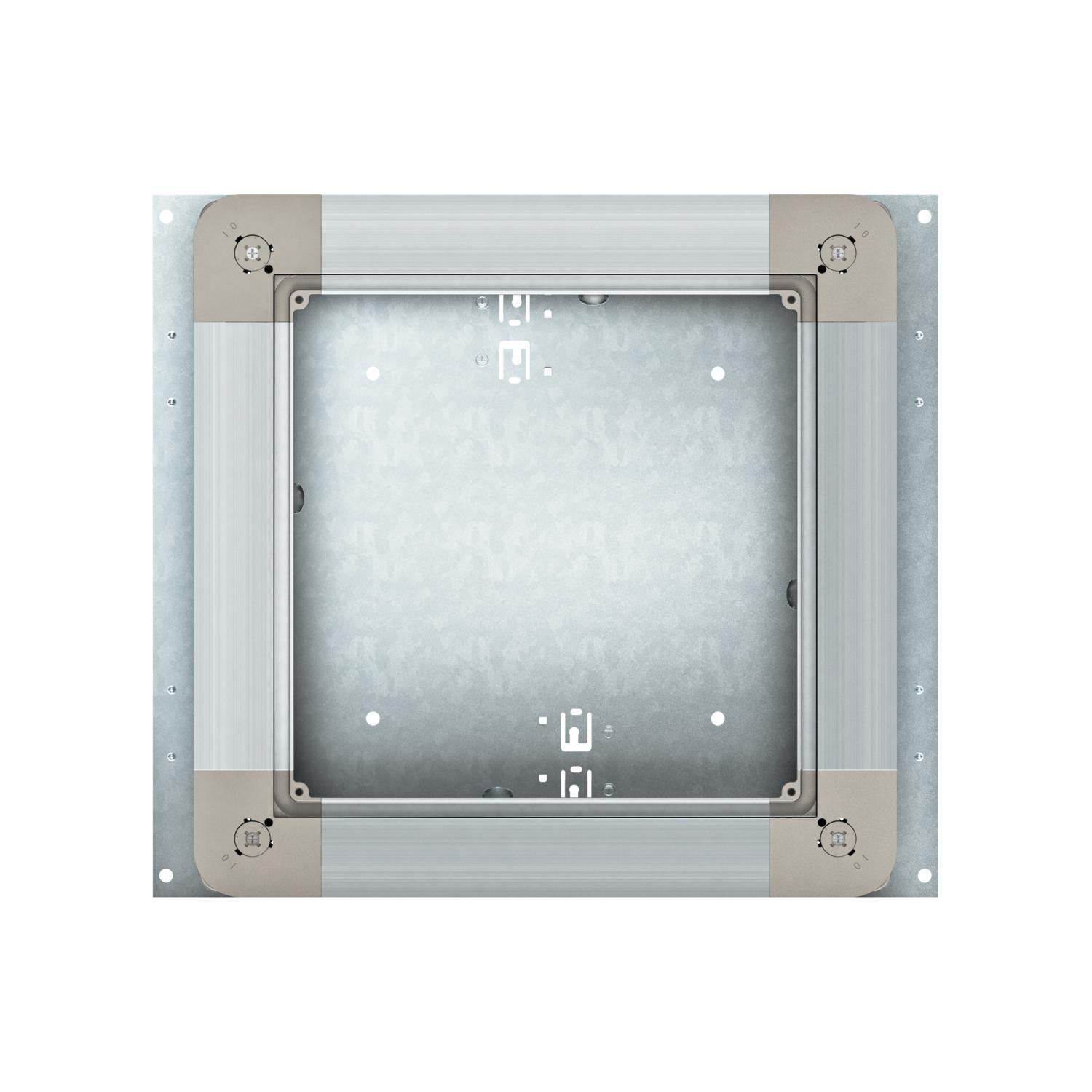

Underfloor junction and branch box for screed-covered underfloor installation ducts with sheet steel side walls. To mount installation units in the mounting lid (to be ordered separately). Height can be infinitely adjusted to the nominal screed height (rapid adjustment possible) and the screed can be worked flush to the screed scraping edge. With noise decoupling option after screed laying and can be used with system accessories, also for heavy-duty application.
Side walls are prepared for duct widths 190 and 250 mm.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Screed height, max. | 125 mm |
| Cover version | Universal |
| Height-adjustment range, min. | 70 mm |
| Height-adjustment range, max. | 125 mm |
| Minimum screed height | 70 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | no |
| For pipe connection | no |
| Installation space, min. | 6,09 dm³ |
| Installation space, max. | 11,63 dm³ |
| Nominal size | 250 mm |
| Duct height, min. | 28 mm |
| Trunking height, max. | 48 mm |
| Dimension | 410x367x70 |
| Surface | Strip galvanized |
| Material | Steel |

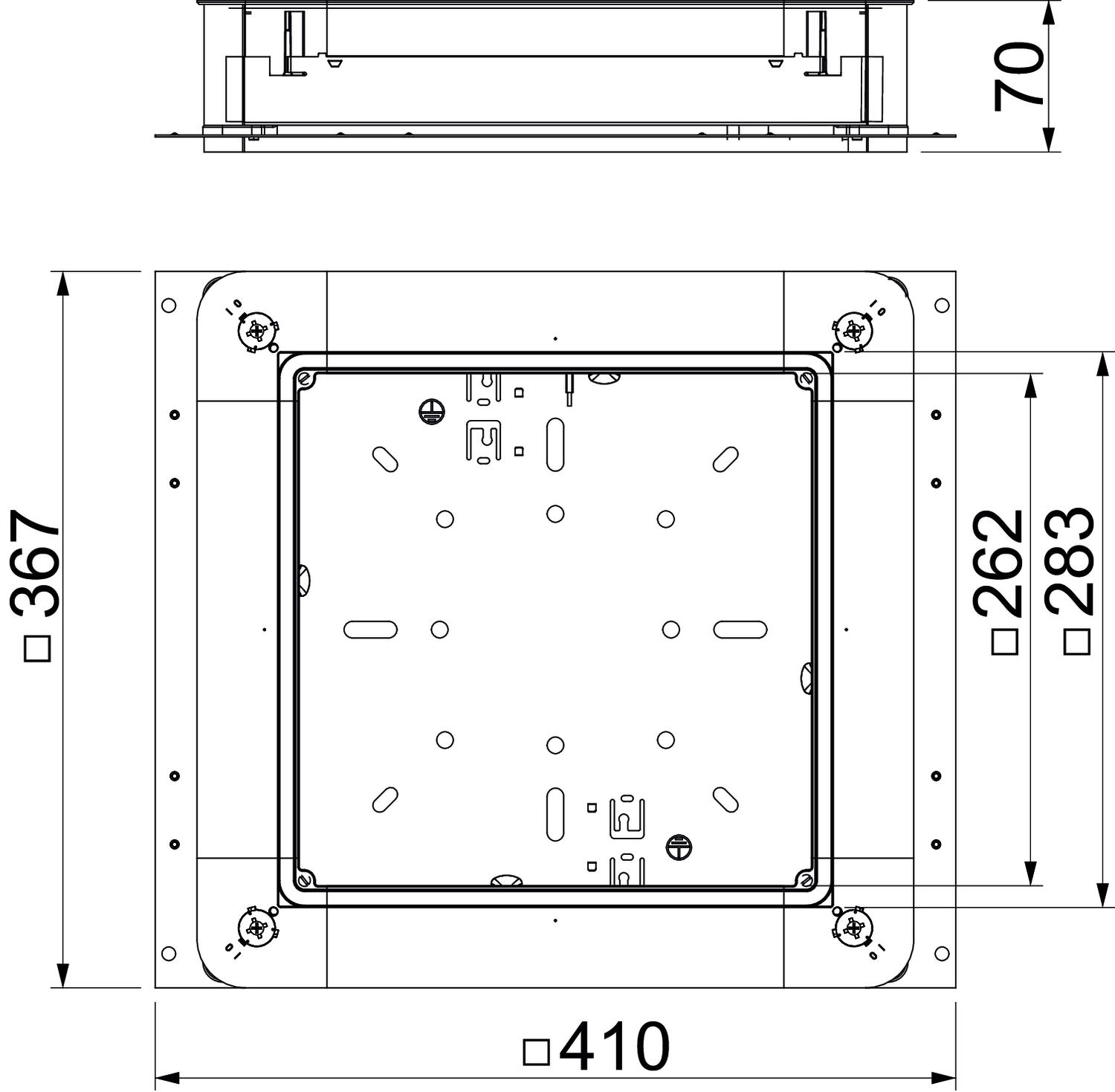

Dimensions
| Dimension A | 367 mm |
|---|---|
| Dimension B | 410 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
Environmental Data
20,5988 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 20,5988 kg CO2e / 1 Piece |
|---|
