UZD250-3 for screed height 165−220 mm
Type UZD 165220 250-3
|Item no. 7410052
|EAN 4012195431688
Item no. / Type
7410052 / UZD 165220 250-3
Cover version
Universal
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

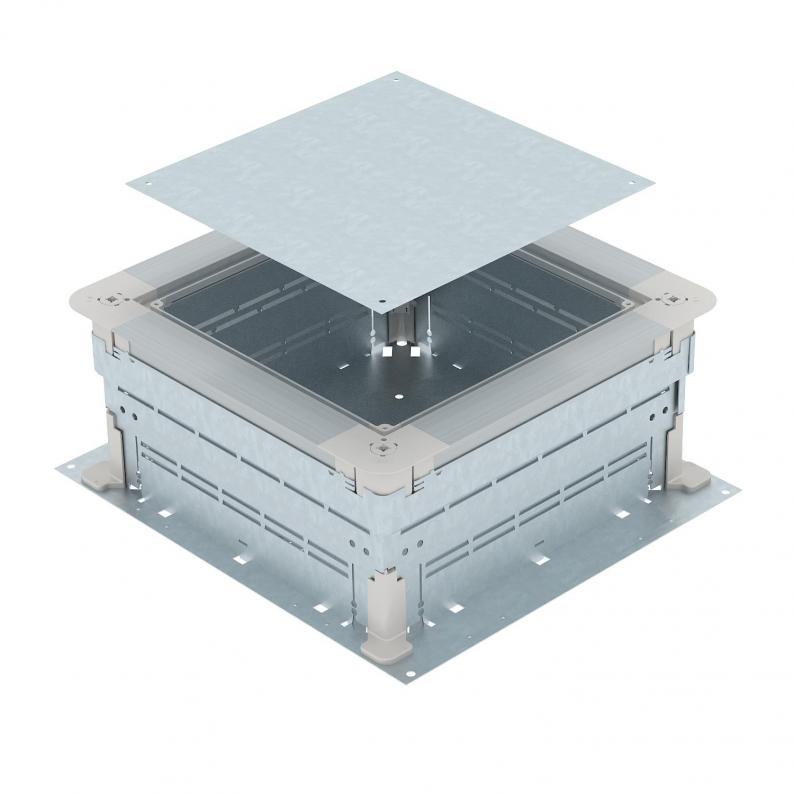

Underfloor junction and branch box for screed-covered underfloor installation systems.
Side walls prepared for duct width 250 mm.
Technical data
Technical data
| Screed height, min. | 165 mm |
|---|---|
| Screed height, max. | 220 mm |
| Cover version | Universal |
| Height-adjustment range, min. | 165 mm |
| Height-adjustment range, max. | 220 mm |
| Minimum screed height | 165 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | yes |
| Lowerable to be flush-floor | no |
| For pipe connection | no |
| Installation space, min. | 15,66 dm³ |
| Installation space, max. | 21,2 dm³ |
| Nominal size | 250 mm |
| Duct height, min. | 28 mm |
| Trunking height, max. | 48 mm |
| Dimension | 410x367x165 |
| Surface | Strip galvanized |
| Material | Steel |

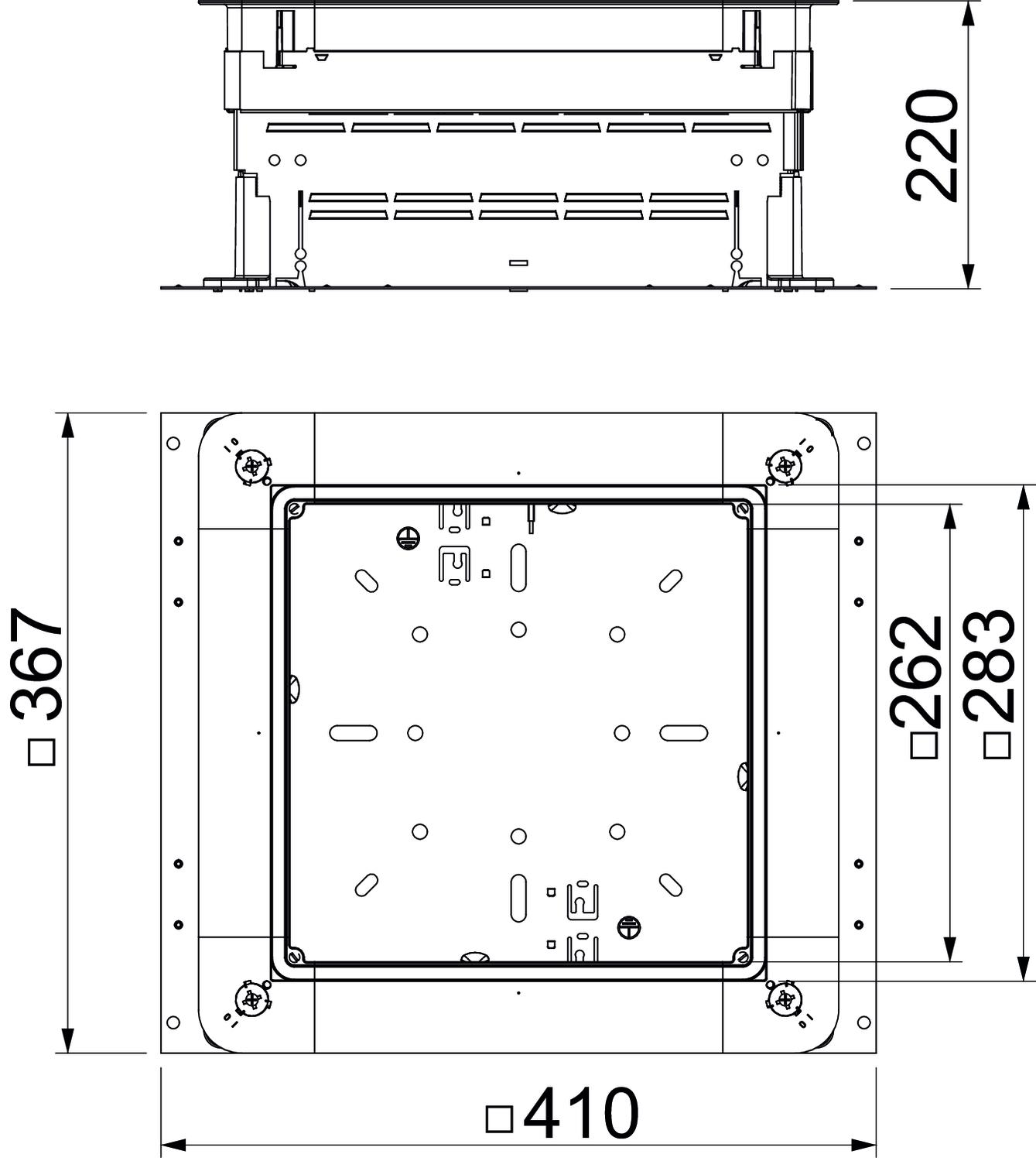

Dimensions
| Dimension A | 367 mm |
|---|---|
| Dimension B | 410 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
Environmental Data
6,5009 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 6,5009 kg CO₂e / 1 Piece |
|---|
