UZD 250-3 with conduit entry for screed height 115-170 mm
Type UZD 170 350-3 R
|Item no. 7410048
|EAN 4012195776574
Item no. / Type
7410048 / UZD 170 350-3 R
Cover version
Universal
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

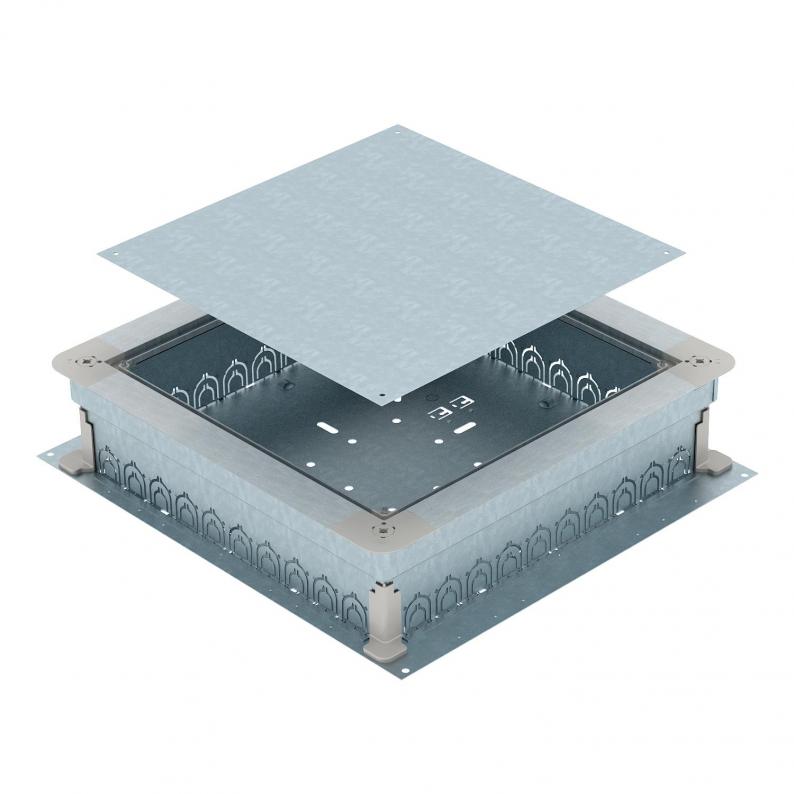

Underfloor junction and branch box for 10 installation pipes on each side (M20 or M32) with sheet steel side walls. To mount installation units in the mounting lid (to be ordered separately). Height can be infinitely adjusted to the nominal screed height (rapid adjustment possible) and the screed can be worked flushed to the screed scraping edge. With noise decoupling option after screed laying and can be used with system accessories, also for heavy-duty application.
Technical data
Technical data
| Screed height, min. | 115 mm |
|---|---|
| Screed height, max. | 170 mm |
| Cover version | Universal |
| Minimum screed height | 115 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| For pipe connection | yes |
| Nominal size | 350 mm |
| Dimension | 510x467x115 |
| Surface | Strip galvanized |
| Material | Steel |
Dimensions
| Dimension A | 467 mm |
|---|---|
| Dimension B | 510 mm |
| Dimension b | 383 mm |
| Dimension a | 362 mm |
Environmental Data
12,6992 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 12,6992 kg CO₂e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6288704
Protective conductor connection bracketType
8AWR
Smallest selling unit: 10 piece
10piece
piece
