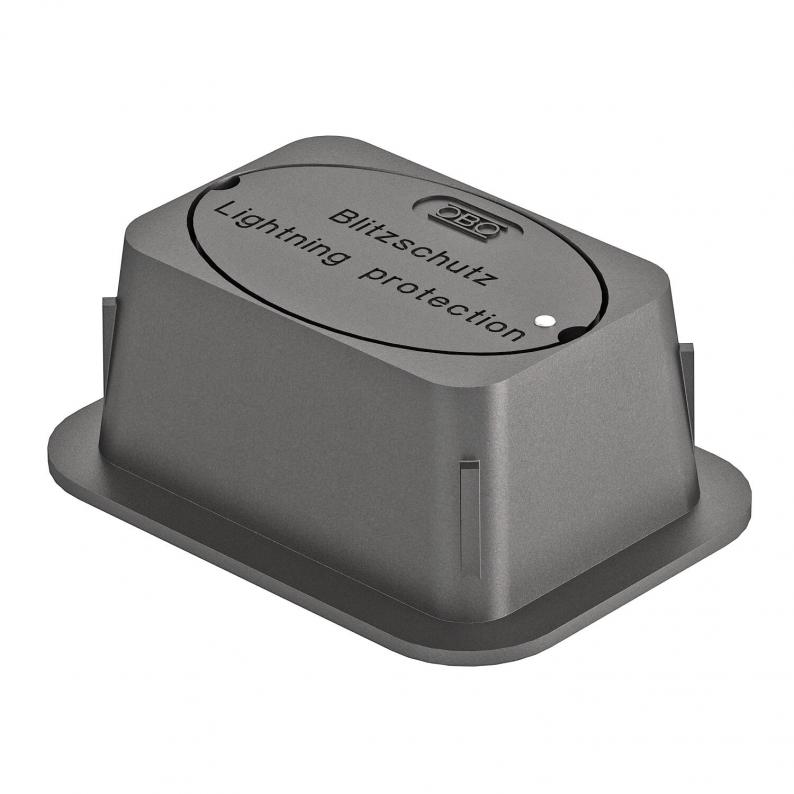

Underfloor test box, cast iron
Type 5700 | Item no. 5106002 | EAN 4012196089505
Item no. / Type
5106002 / 5700
Dimension
227x155x115
Smallest selling unit: 1 piece
1piece
Description
• Without base
• Cast iron, painted black
• Without cut-off unit
• To VDE 0185-561-5 (IEC 62561-5) suitable for heavy loads (up to 40 kN/4.0 t)
• Cast iron, painted black
• Without cut-off unit
• To VDE 0185-561-5 (IEC 62561-5) suitable for heavy loads (up to 40 kN/4.0 t)
Technical data

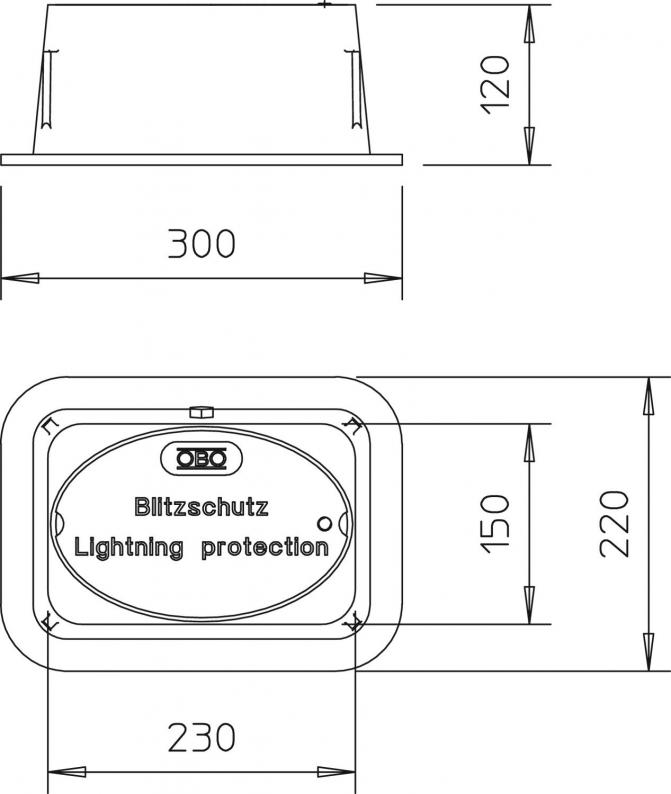

Dimensions
| Length | 300 mm |
|---|---|
| Width | 220 mm |
Technical data
| Dimension | 227x155x115 |
|---|---|
| Material | Cast iron |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,2686 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Dimension
Item no.
5700
227x155x115
5106002
5700
Item no.
5106002
Dimension
227x155x115
